7831788-00

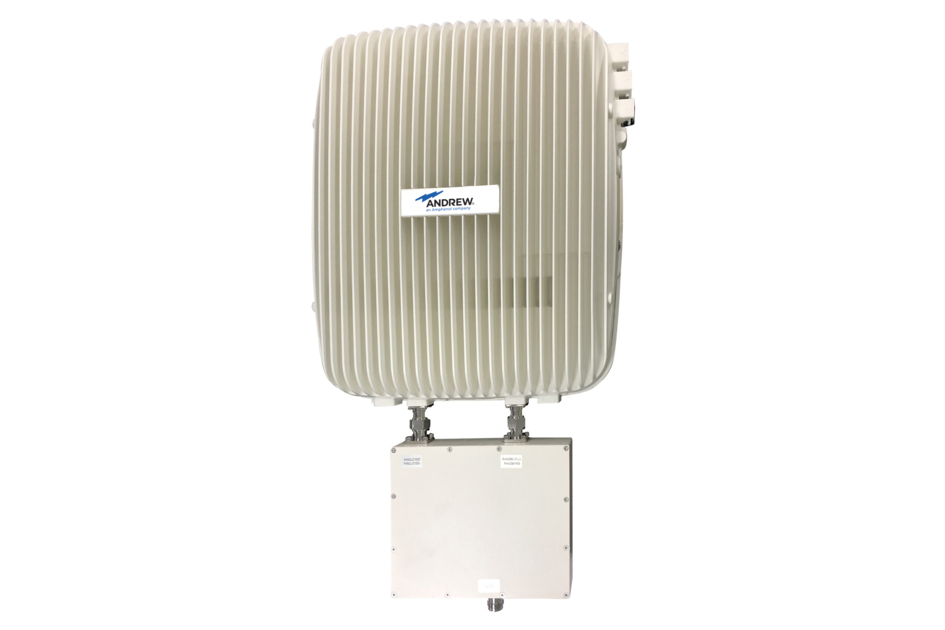

Diplexer for ERA® 694-1880 & 1920-2700 MHz Outdoor Applications
Specifications
Product classification
| Product Type | Diplexer |
| Product Brand | ERA® |
General specifications
| Application | Outdoor |
| Input Connector Interface | 4.3-10 Male |
| Note | Detailed Product Specifications are available. Please contact your local ANDREW representative. |
| Output Connector Interface | 4.3-10 Female |
Dimensions
| Height | 210 mm | 8.268 in |
| Width | 165 mm | 6.496 in |
| Depth | 48 mm | 1.89 in |
Electrical specifications
| Insertion Loss, maximum | 0.25 dB |
| Average Power, maximum | 1 W |
| Impedance | 50 ohm |
| Intermodulation | -155dBc @ 2 x +30dBm CW (3rd Order) |
| Isolation, maximum | 40 dB |
| Operating Frequency Band | 694 – 960 MHz | 1710 – 1880 MHz | 1920 – 2170 MHz | 2300 – 2700 MHz |
| Passband Ripple, Tolerance | ± 0.7 dB |
| Peak Power, maximum | 0.01 kW |
Environmental specifications
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
Product classification
| Product Type | Diplexer |
| Product Brand | ERA® |
General specifications
| Application | Outdoor |
| Input Connector Interface | 4.3-10 Male |
| Note | Detailed Product Specifications are available. Please contact your local ANDREW representative. |
| Output Connector Interface | 4.3-10 Female |
Dimensions
| Height | 210 mm | 8.268 in |
| Width | 165 mm | 6.496 in |
| Depth | 48 mm | 1.89 in |
Electrical specifications
| Insertion Loss, maximum | 0.25 dB |
| Average Power, maximum | 1 W |
| Impedance | 50 ohm |
| Intermodulation | -155dBc @ 2 x +30dBm CW (3rd Order) |
| Isolation, maximum | 40 dB |
| Operating Frequency Band | 694 – 960 MHz | 1710 – 1880 MHz | 1920 – 2170 MHz | 2300 – 2700 MHz |
| Passband Ripple, Tolerance | ± 0.7 dB |
| Peak Power, maximum | 0.01 kW |
Environmental specifications
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
