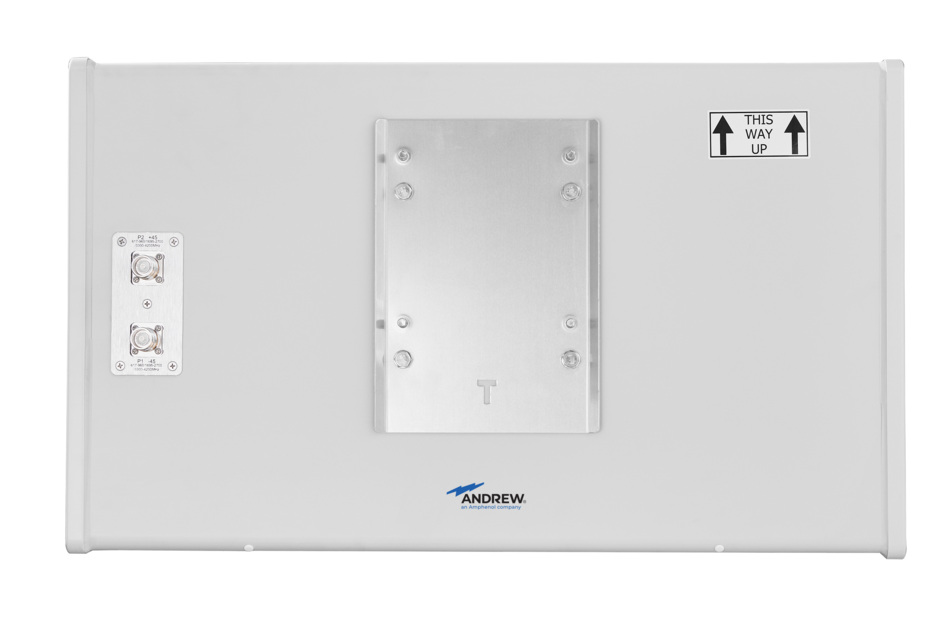

CMAX-LHM2-30-I53
Base product: DIRECTIONAL-ANTENNAS
Low PIM Directional High Capacity Venue 2x2 MIMO Antenna 4G/5G/C-Band, 617–960 MHz, 1695–2700 MHz and 3300-4200MHz, 4.3-10
Specifications
Product classification
| Product Type | Over-the-head stadium antenna |
General specifications
| Application | Indoor/Outdoor |
| Antenna Type | Directional |
| Antenna Array Characteristic | MIMO 2x2 |
| Polarization | ±45° |
| Color | Light Gray (RAL 7035) |
| Number of Ports | 2 |
| Radome Material | PVC, UV resistant |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Height | 140 mm | 5.512 in |
| Width | 417 mm | 16.417 in |
| Length | 700 mm | 27.559 in |
Electrical specifications
| Impedance | 50 ohm |
| Lightning Protection | dc Ground |
| Operating Frequency Band | 617 – 698 MHz | 698 – 960 MHz | 1695 – 2700 MHz | 3300 – 4200 MHz |
Electrical specifications
| Frequency Band, MHz | 617–698 | 698–960 | 1695–2700 | 3300–4200 |
| Gain, dBi | 10.1 | 11.1 | 10.7 | 10.1 |
| Beamwidth, Horizontal, degrees | 38 | 29 | 31 | 30 |
| Beamwidth, Vertical, degrees | 70 | 70 | 73 | 71 |
| Horizontal Sidelobe, dB | 14 | 14 | 15 | 15 |
| Front-to-Back Total Power at 180° ± 30°, dB | 20 | 20 | 20 | 15 |
| CPR at Boresight, dB | 16 | 18 | 16 | 18 |
| Isolation, Cross Polarization, dB | 20 | 20 | 20 | 20 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 200 | 200 | 200 | 200 |
Return loss/vswr
| Frequency band | Vswr, maximum | Return loss, maximum (db) | Vswr, mean | Return loss, mean (db) |
| 617–800 MHz | 1.725 | 11.5 | 1.499 | 14 |
| 800–960 MHz | 1.725 | 11.5 | 1.499 | 14 |
| 1695–2200 MHz | 1.725 | 11.5 | 1.499 | 14 |
| 2200–2700 MHz | 1.725 | 11.5 | 1.499 | 14 |
| 3300–4200 MHz | 1.703 | 11.7 | 1.499 | 14 |
Mechanical specifications
| Wind Loading @ Velocity, maximum | 947.0 N @ 241 km/h (212.9 lbf @ 150 mph) |
| Wind Speed, maximum | 241.4 km/h (150 mph) |
Environmental specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
| Vibration Test Method | ASTM D4169 | IEC 60068-2-6 |
Packaging and weights
| Height, packed | 235 mm | 9.252 in |
| Width, packed | 480 mm | 18.898 in |
| Length, packed | 940 mm | 37.008 in |
| Included | Mounting bracket |
| Net Weight, with mounting kit | 10.4 kg | 22.928 lb |
| Packaging quantity | 1 |
| Weight, gross | 13.8 kg | 30.424 lb |
| Weight, net | 7.6 kg | 16.755 lb |
Product classification
| Product Type | Over-the-head stadium antenna |
General specifications
| Application | Indoor/Outdoor |
| Antenna Type | Directional |
| Antenna Array Characteristic | MIMO 2x2 |
| Polarization | ±45° |
| Color | Light Gray (RAL 7035) |
| Number of Ports | 2 |
| Radome Material | PVC, UV resistant |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Height | 140 mm | 5.512 in |
| Width | 417 mm | 16.417 in |
| Length | 700 mm | 27.559 in |
Electrical specifications
| Impedance | 50 ohm |
| Lightning Protection | dc Ground |
| Operating Frequency Band | 617 – 698 MHz | 698 – 960 MHz | 1695 – 2700 MHz | 3300 – 4200 MHz |
Electrical specifications
| Frequency Band, MHz | 617–698 | 698–960 | 1695–2700 | 3300–4200 |
| Gain, dBi | 10.1 | 11.1 | 10.7 | 10.1 |
| Beamwidth, Horizontal, degrees | 38 | 29 | 31 | 30 |
| Beamwidth, Vertical, degrees | 70 | 70 | 73 | 71 |
| Horizontal Sidelobe, dB | 14 | 14 | 15 | 15 |
| Front-to-Back Total Power at 180° ± 30°, dB | 20 | 20 | 20 | 15 |
| CPR at Boresight, dB | 16 | 18 | 16 | 18 |
| Isolation, Cross Polarization, dB | 20 | 20 | 20 | 20 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 200 | 200 | 200 | 200 |
Return loss/vswr
| Frequency Band | VSWR, Maximum | Return Loss, Maximum (dB) | VSWR, Mean | Return Loss, Mean (dB) |
| 617–800 MHz | 1.725 | 11.5 | 1.499 | 14 |
| 800–960 MHz | 1.725 | 11.5 | 1.499 | 14 |
| 1695–2200 MHz | 1.725 | 11.5 | 1.499 | 14 |
| 2200–2700 MHz | 1.725 | 11.5 | 1.499 | 14 |
| 3300–4200 MHz | 1.703 | 11.7 | 1.499 | 14 |
Mechanical specifications
| Wind Loading @ Velocity, maximum | 947.0 N @ 241 km/h (212.9 lbf @ 150 mph) |
| Wind Speed, maximum | 241.4 km/h (150 mph) |
Environmental specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
| Vibration Test Method | ASTM D4169 | IEC 60068-2-6 |
Packaging and weights
| Height, packed | 235 mm | 9.252 in |
| Width, packed | 480 mm | 18.898 in |
| Length, packed | 940 mm | 37.008 in |
| Included | Mounting bracket |
| Net Weight, with mounting kit | 10.4 kg | 22.928 lb |
| Packaging quantity | 1 |
| Weight, gross | 13.8 kg | 30.424 lb |
| Weight, net | 7.6 kg | 16.755 lb |
