F4A-HMNM-7M-P
Base product: F4A-HMNM-P

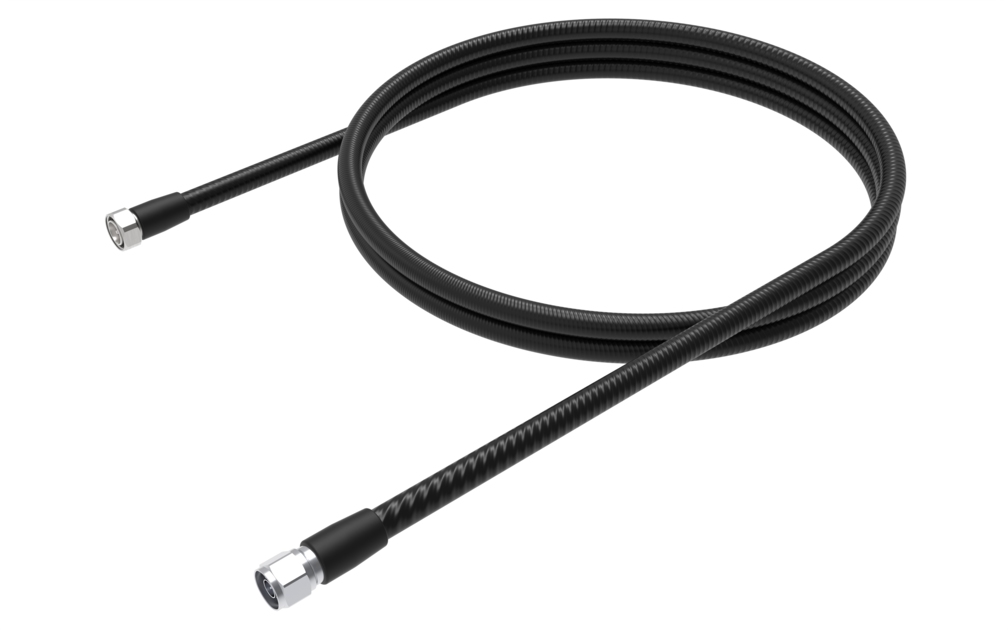

HELIAX® 1/2" SureFlex® Jumper with interface types 4.3-10 Male and N Male, 7 m
Features and benefits
- WARNING: DO NOT MATE WITH 4.1-9.5 DIN
Specifications
Product classification
| Product Type | SureFlex® Premium, static PIM |
| Product Brand | HELIAX® | SureFlex® |
| Product Series | RSJ4-50 |
General specifications
| Body Style, Connector A | Straight |
| Body Style, Connector B | Straight |
| Interface, Connector A | 4.3-10 Male |
| Interface, Connector B | N Male |
| Specification Sheet Revision Level | A |
Dimensions
| Length | 7 m | 22.966 ft |
| Cable Length Unit | Meters |
| Nominal Size | 1/2 in |
Electrical specifications
| 3rd Order IMD Static | -112 dBm |
| 3rd Order IMD Static Test Method | Two +43 dBm carriers |
| DTF, Connector A | -34 dB |
| DTF, Connector B | -34 dB |
Return loss/vswr
| Frequency band | Vswr | Return loss (db) |
| 698–960 MHz | 1.101 | 26.36 |
| 1700–2200 MHz | 1.101 | 26.36 |
| 2200–2700 MHz | 1.135 | 23.98 |
Jumper assembly sample label
| Click on image to enlarge. |
Environmental specifications
| Immersion Test Method | Meets IEC 60529:2001, IP68 in mated condition |
Product classification
| Product Type | SureFlex® Premium, static PIM |
| Product Brand | HELIAX® | SureFlex® |
| Product Series | RSJ4-50 |
General specifications
| Body Style, Connector A | Straight |
| Body Style, Connector B | Straight |
| Interface, Connector A | 4.3-10 Male |
| Interface, Connector B | N Male |
| Specification Sheet Revision Level | A |
Dimensions
| Length | 7 m | 22.966 ft |
| Cable Length Unit | Meters |
| Nominal Size | 1/2 in |
Electrical specifications
| 3rd Order IMD Static | -112 dBm |
| 3rd Order IMD Static Test Method | Two +43 dBm carriers |
| DTF, Connector A | -34 dB |
| DTF, Connector B | -34 dB |
Return loss/vswr
| Frequency Band | VSWR | Return Loss (dB) |
| 698–960 MHz | 1.101 | 26.36 |
| 1700–2200 MHz | 1.101 | 26.36 |
| 2200–2700 MHz | 1.135 | 23.98 |
Environmental specifications
| Immersion Test Method | Meets IEC 60529:2001, IP68 in mated condition |
| Click on image to enlarge. |
