F1R-NFQM-M3

Base product: F1A-PNFQM

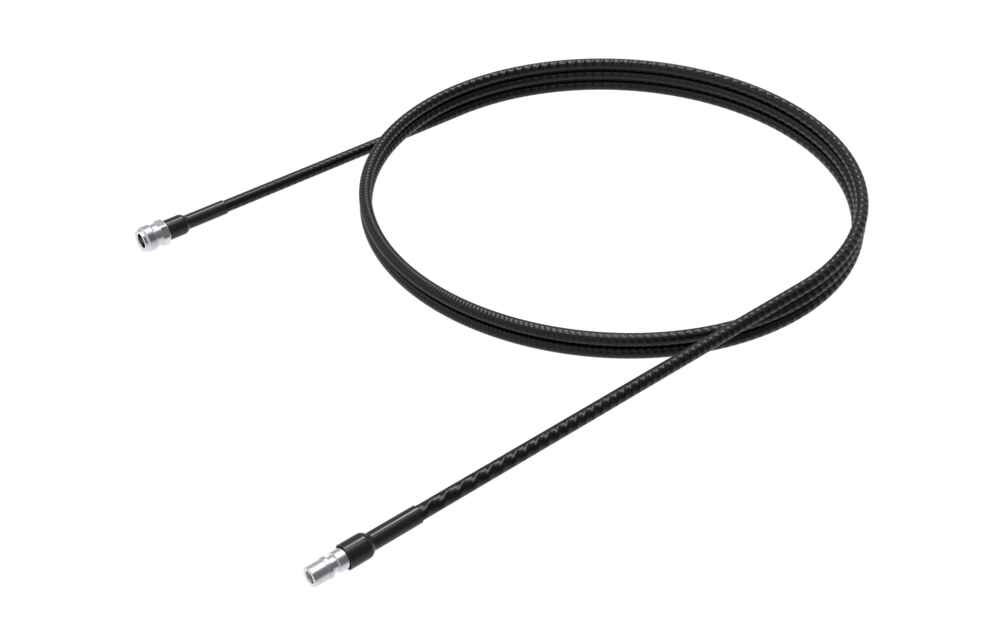

FSJ1RK-50B SureFlex® Jumper with interface types N Female and QMA Male, 0.3 Meters

Finish making your selections or clear them to view relevant specifications.
Find a partner

Product classification

Product Type SureFlex® standard
Product Brand HELIAX® | SureFlex®
Product Series FSJ1RK-50B

General specifications

Body Style, Connector A Straight
Body Style, Connector B Straight
Interface, Connector A N Female
Interface, Connector B QMA Male
Specification Sheet Revision Level A

Dimensions

Length 0.3 m | 0.984 ft
Cable Length Unit Meters
Nominal Size 1/4 in

Return loss/vswr

Frequency band Vswr Return loss (db)
700–3000 MHz 1.288 18.00

Jumper assembly sample label

Click on image to enlarge.

Environmental specifications

Immersion Test Method Meets IEC 60529:2001, IP68 in mated condition

Product classification

Product Type SureFlex® standard
Product Brand HELIAX® | SureFlex®
Product Series FSJ1RK-50B

General specifications

Body Style, Connector A Straight
Body Style, Connector B Straight
Interface, Connector A N Female
Interface, Connector B QMA Male
Specification Sheet Revision Level A

Dimensions

Length 0.3 m | 0.984 ft
Cable Length Unit Meters
Nominal Size 1/4 in

Return loss/vswr

Frequency Band VSWR Return Loss (dB)
700–3000 MHz 1.288 18.00

Environmental specifications

Immersion Test Method Meets IEC 60529:2001, IP68 in mated condition
