CLT5HM-CO
Base product

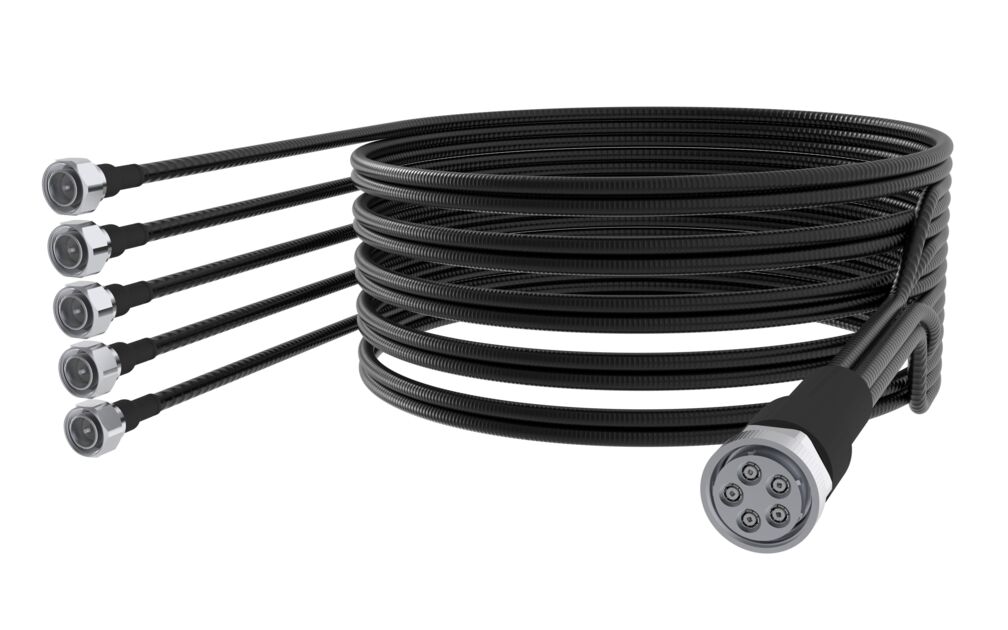

MQ Multiport cluster 5 ports cable assembly with interface type MQ female to 4.3-10 male,size 1/3"
Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.
Specifications
Product classification
| Product Type | Wireless transmission cable assembly |
| Product Series | MQ |
General specifications
| Attachment, Connector A | Factory attached |
| Attachment, Connector B | Factory attached |
| Body Style, Connector A | Straight |
| Body Style, Connector B | Straight |
| Interface, Connector A | MQ Female |
| Interface, Connector B | 4.3-10 Male |
| Specification Sheet Revision Level | B |
Dimensions
| Nominal Size | 0.300 in |
Port configuration
| Click on image to enlarge. |
Mechanical specifications
| Minimum Bend Radius, multiple Bends | 70 mm | 2.756 in |
| Minimum Bend Radius, Single Bend | 35 mm | 1.378 in |
Environmental specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Immersion Test Method | IEC 60529, IP67 |
Product classification
| Product Type | Wireless transmission cable assembly |
| Product Series | MQ |
General specifications
| Attachment, Connector A | Factory attached |
| Attachment, Connector B | Factory attached |
| Body Style, Connector A | Straight |
| Body Style, Connector B | Straight |
| Interface, Connector A | MQ Female |
| Interface, Connector B | 4.3-10 Male |
| Specification Sheet Revision Level | B |
Dimensions
| Nominal Size | 0.300 in |
Mechanical specifications
| Minimum Bend Radius, multiple Bends | 70 mm | 2.756 in |
| Minimum Bend Radius, Single Bend | 35 mm | 1.378 in |
Environmental specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Immersion Test Method | IEC 60529, IP67 |
| Click on image to enlarge. |
