CLT4XM-CO

Base product

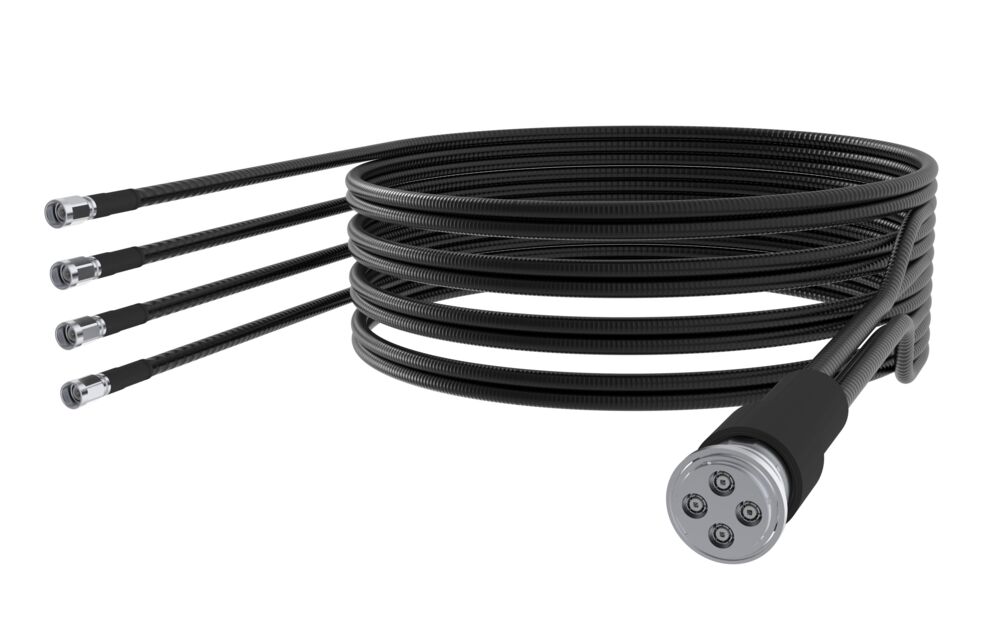

MQ Multiport cluster 4 ports cable assembly with interface type MQ female to Nex10 male,size 1/3"

Finish making your selections or clear them to view relevant specifications.

Download specifications

Find a partner

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product variants

Configure and display product variants of CLT4XM-CO by selecting options

Specifications

Product classification

Product Type	Wireless transmission cable assembly
Product Series	MQ

General specifications

Attachment, Connector A	Factory attached
Attachment, Connector B	Factory attached
Body Style, Connector A	Straight
Body Style, Connector B	Straight
Interface, Connector A	MQ Female
Interface, Connector B	NEX10 Male
Specification Sheet Revision Level	B

Dimensions

Nominal Size

0.300 in

Port configuration

Click on image to enlarge.

Mechanical specifications

Minimum Bend Radius, multiple Bends	70 mm \| 2.756 in
Minimum Bend Radius, Single Bend	35 mm \| 1.378 in

Environmental specifications

Operating Temperature	-40 °C to +85 °C (-40 °F to +185 °F)
Immersion Test Method	IEC 60529, IP67

Regulatory compliance/certifications

Agency	Classification
CHINA-ROHS	Below maximum concentration value
ROHS	Compliant
UK-ROHS	Compliant
REACH-SVHC	Compliant as per SVHC revision on www.andrew.com/ProductCompliance
