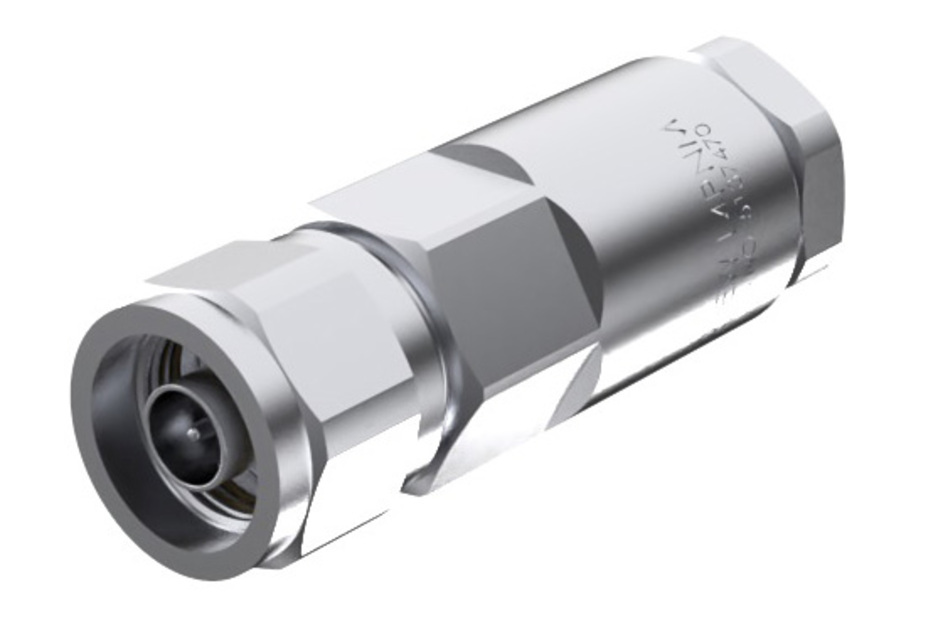

L4PNM-H

Type N Male for 1/2 in LDF4-50A cable. Only available through distribution

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner

Product classification

Product Type Wireless and radiating connector
Product Brand HELIAX®
Product Series LDF4-50A
Ordering Note ANDREW® non-standard product

General specifications

Body Style Straight
Cable Family LDF4-50A
Inner Contact Attachment Method Solder
Inner Contact Plating Gold
Interface N Male
Mounting Angle Straight
Outer Contact Attachment Method Self-flare
Outer Contact Plating Trimetal
Pressurizable No

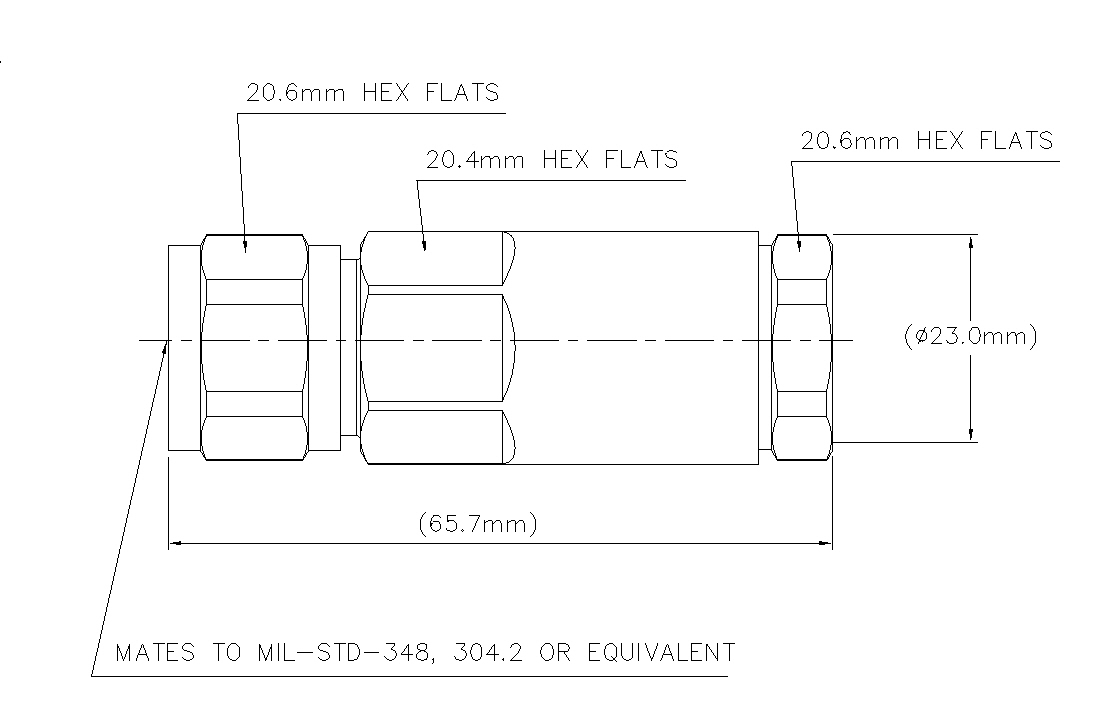

Dimensions

Length 66.04 mm | 2.600 in
Diameter 25.4 mm | 1.000 in
Nominal Size 1/2 in

Electrical specifications

Insertion Loss Coefficient, typical 0.05
Cable Impedance 50 ohm
Connector Impedance 50 ohm
Inner Contact Resistance, maximum 2 mOhm
Operating Frequency Band 0 – 8800 MHz
Outer Contact Resistance, maximum 0.3 mOhm
RF Operating Voltage, maximum (vrms) 707 V

Return loss/vswr

Frequency band Vswr Return loss (db)
3.5–4.4 GHz 1.152 23.02
45–920 MHz 1.036 35.05
920–2700 MHz 1.058 31.00
2700–3500 MHz 1.106 25.96
4400–5300 MHz 1.196 20.99
5300–6200 MHz 1.222 20.01
6200–8800 MHz 1.290 18.00

Mechanical specifications

Attachment Durability 25 cycles
Connector Retention Tensile Force 889.64 N | 200.000 lbf
Connector Retention Torque 5.42 N-m | 47.998 in lb
Coupling Nut Proof Torque 4.52 N-m | 39.997 in lb
Coupling Nut Retention Force 444.82 N | 100.000 lbf
Coupling Nut Retention Force Method MIL-C-39012C-3.25, 4.6.22
Interface Durability 500 cycles
Interface Durability Method IEC 61169-16:9.5

Environmental specifications

Attenuation, Ambient Temperature 20 °C | 68 °F
Average Power, Ambient Temperature 40 °C | 104 °F

Packaging and weights

Weight, net 108.86 g | 0.24 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant

Product classification

Product Type Wireless and radiating connector
Product Brand HELIAX®
Product Series LDF4-50A
Ordering Note ANDREW® non-standard product

General specifications

Body Style Straight
Cable Family LDF4-50A
Inner Contact Attachment Method Solder
Inner Contact Plating Gold
Interface N Male
Mounting Angle Straight
Outer Contact Attachment Method Self-flare
Outer Contact Plating Trimetal
Pressurizable No

Dimensions

Length 66.04 mm | 2.600 in
Diameter 25.4 mm | 1.000 in
Nominal Size 1/2 in

Electrical specifications

Insertion Loss Coefficient, typical 0.05
Cable Impedance 50 ohm
Connector Impedance 50 ohm
Inner Contact Resistance, maximum 2 mOhm
Operating Frequency Band 0 – 8800 MHz
Outer Contact Resistance, maximum 0.3 mOhm
RF Operating Voltage, maximum (vrms) 707 V

Return loss/vswr

Frequency Band VSWR Return Loss (dB)
3.5–4.4 GHz 1.152 23.02
45–920 MHz 1.036 35.05
920–2700 MHz 1.058 31.00
2700–3500 MHz 1.106 25.96
4400–5300 MHz 1.196 20.99
5300–6200 MHz 1.222 20.01
6200–8800 MHz 1.290 18.00

Mechanical specifications

Attachment Durability 25 cycles
Connector Retention Tensile Force 889.64 N | 200.000 lbf
Connector Retention Torque 5.42 N-m | 47.998 in lb
Coupling Nut Proof Torque 4.52 N-m | 39.997 in lb
Coupling Nut Retention Force 444.82 N | 100.000 lbf
Coupling Nut Retention Force Method MIL-C-39012C-3.25, 4.6.22
Interface Durability 500 cycles
Interface Durability Method IEC 61169-16:9.5

Environmental specifications

Attenuation, Ambient Temperature 20 °C | 68 °F
Average Power, Ambient Temperature 40 °C | 104 °F

Packaging and weights

Weight, net 108.86 g | 0.24 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
