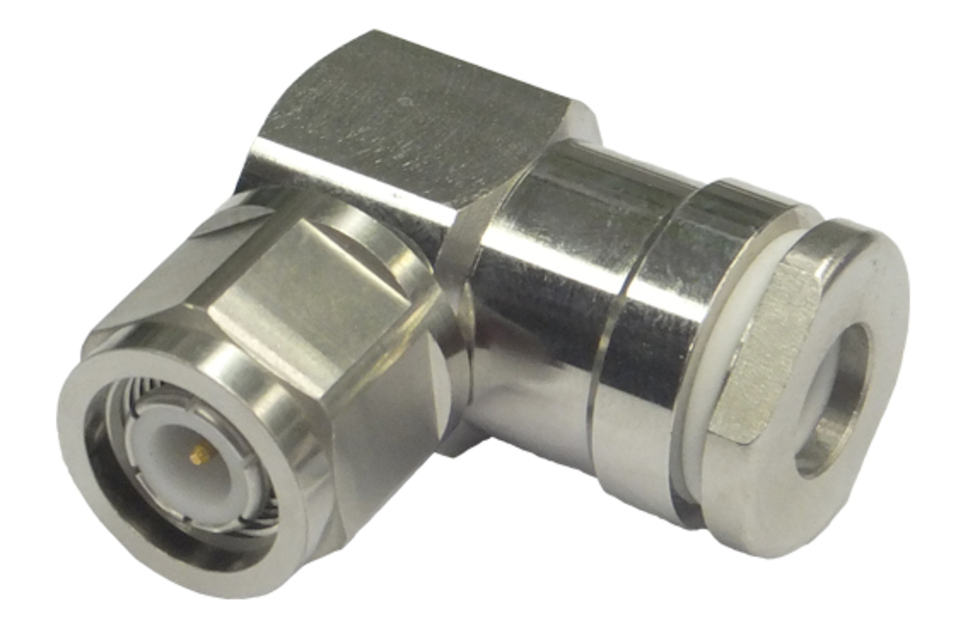

300BPTR-C

TNC Male Right Angle for CNT-300 braided cable

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner

Product classification

Product Type Braided cable connector
Product Brand CNT®

General specifications

Body Style Right angle
Inner Contact Attachment Method Captivated
Inner Contact Plating Gold
Interface TNC Male
Outer Contact Attachment Method Clamp
Outer Contact Plating Trimetal

Dimensions

Height 30.31 mm | 1.193 in
Width 16.5 mm | 0.65 in
Length 30.1 mm | 1.185 in
Nominal Size 0.300 in

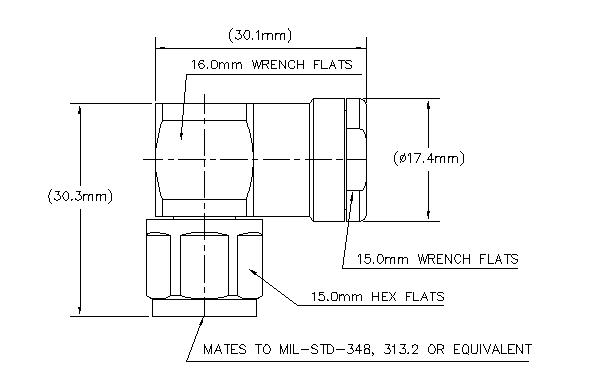

Outline drawing

Click on image to enlarge.

Electrical specifications

Insertion Loss, typical 0.05 dB
Cable Impedance 50 ohm
Connector Impedance 50 ohm
dc Test Voltage 1500 V
Inner Contact Resistance, maximum 1.5 mOhm
Insulation Resistance, minimum 5000 mOhm
Operating Frequency Band 0 – 6000 MHz
Outer Contact Resistance, maximum 0.4 mOhm
Peak Power, maximum 5 kW
RF Operating Voltage, maximum (vrms) 500 V

Return loss/vswr

Frequency band Vswr Return loss (db)
0–500 MHz 1.050 32.26
500–1000 MHz 1.052 31.93
1000–2000 MHz 1.069 29.54
2000–3000 MHz 1.080 28.30
3000–4000 MHz 1.069 29.54
4000–5000 MHz 1.102 26.29
5000–6000 MHz 1.148 23.24

Mechanical specifications

Connector Retention Tensile Force 220 N | 49.458 lbf
Connector Retention Torque 0.45 N-m | 3.983 in lb
Coupling Nut Proof Torque 1.7 N-m | 15.046 in lb
Coupling Nut Proof Torque Method IEC 61169-17:9.3.6
Coupling Nut Retention Force 445 N | 100.04 lbf
Coupling Nut Retention Force Method IEC 61169-17:9.3.11
Interface Durability 500 cycles
Interface Durability Method IEC 61169-17:9.5
Mechanical Shock Test Method IEC 60068-2-27

Environmental specifications

Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Storage Temperature -65 °C to +125 °C (-85 °F to +257 °F)
Attenuation, Ambient Temperature 20 °C | 68 °F
Average Power, Ambient Temperature 40 °C | 104 °F
Average Power, Inner Conductor Temperature 100 °C | 212 °F
Immersion Depth 1 m
Immersion Test Mating Mated
Immersion Test Method IEC 60529:2001, IP68
Vibration Test Method IEC 60068-2-6

Packaging and weights

Weight, net 58.49 g | 0.129 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant, Compliant/Exempted
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

Product classification

Product Type Braided cable connector
Product Brand CNT®

General specifications

Body Style Right angle
Inner Contact Attachment Method Captivated
Inner Contact Plating Gold
Interface TNC Male
Outer Contact Attachment Method Clamp
Outer Contact Plating Trimetal

Dimensions

Height 30.31 mm | 1.193 in
Width 16.5 mm | 0.65 in
Length 30.1 mm | 1.185 in
Nominal Size 0.300 in

Electrical specifications

Insertion Loss, typical 0.05 dB
Cable Impedance 50 ohm
Connector Impedance 50 ohm
dc Test Voltage 1500 V
Inner Contact Resistance, maximum 1.5 mOhm
Insulation Resistance, minimum 5000 mOhm
Operating Frequency Band 0 – 6000 MHz
Outer Contact Resistance, maximum 0.4 mOhm
Peak Power, maximum 5 kW
RF Operating Voltage, maximum (vrms) 500 V

Return loss/vswr

Frequency Band VSWR Return Loss (dB)
0–500 MHz 1.050 32.26
500–1000 MHz 1.052 31.93
1000–2000 MHz 1.069 29.54
2000–3000 MHz 1.080 28.30
3000–4000 MHz 1.069 29.54
4000–5000 MHz 1.102 26.29
5000–6000 MHz 1.148 23.24

Mechanical specifications

Connector Retention Tensile Force 220 N | 49.458 lbf
Connector Retention Torque 0.45 N-m | 3.983 in lb
Coupling Nut Proof Torque 1.7 N-m | 15.046 in lb
Coupling Nut Proof Torque Method IEC 61169-17:9.3.6
Coupling Nut Retention Force 445 N | 100.04 lbf
Coupling Nut Retention Force Method IEC 61169-17:9.3.11
Interface Durability 500 cycles
Interface Durability Method IEC 61169-17:9.5
Mechanical Shock Test Method IEC 60068-2-27

Environmental specifications

Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Storage Temperature -65 °C to +125 °C (-85 °F to +257 °F)
Attenuation, Ambient Temperature 20 °C | 68 °F
Average Power, Ambient Temperature 40 °C | 104 °F
Average Power, Inner Conductor Temperature 100 °C | 212 °F
Immersion Depth 1 m
Immersion Test Mating Mated
Immersion Test Method IEC 60529:2001, IP68
Vibration Test Method IEC 60068-2-6

Packaging and weights

Weight, net 58.49 g | 0.129 lb
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant, Compliant/Exempted
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance
