MPTE02EBBBNN
- Available in:
- Europe

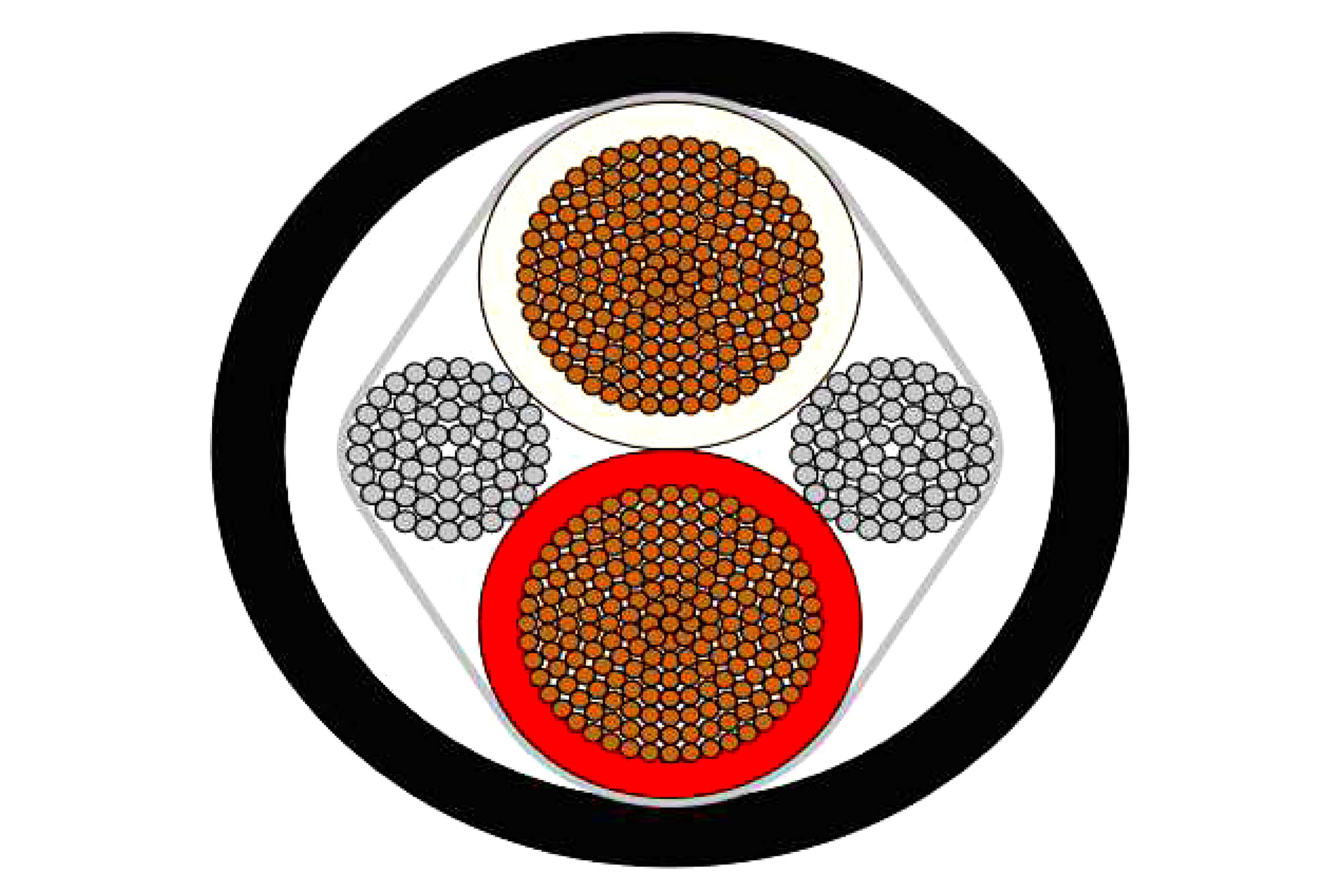

HELIAX® Power cable, White & Red with aluminum drain wire & shield with 2x35 mm2 cores, flame resistant CPR Class B2ca s1a, d2, a1 rated, 500 meters
Features and benefits
Rated voltage: AC: 0.6/1 kV (1,2 kV) DC: 0.9/1.5 kV.Operating Voltage 48 VDC. Test voltage: 8,4 KV DC for 5min. Aluminum drain wire 2x12mm². Shielding Resistance 1.21 (Ohm/km).
Specifications
Product classification
| Regional Availability | Europe |
| Product Type | Power cable |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Application | Remote radio head |
| Cable Type | Power |
| Conductor Type, singles | Stranded |
| Conductors, quantity | 2 |
| Construction Type | Discrete power cable |
| Drain Wire Type | Stranded |
| Drain Wire, quantity | 2 |
| Jacket Color | Black |
| Jacket Color, singles | Red | White |
| Outer Shield (Tape) Material | Al/PET tape |
Dimensions
| Cable Length | 500.024 m | 1640.5 ft |
| Diameter Over Jacket | 21.200 mm | 0.8346457 in |
| Conductor Gauge | 35 mm² class 5 |
Electrical specifications
| Conductor dc Resistance Note | Maximum value based on a standard condition of 20 °C (68 °F) |
| Safety Voltage Rating | 900 V |
Material specifications
| Ground Wire Material | Annealed aluminum wires |
| Jacket Material | Flame retardant PE |
| Outer Shield (Tape) Material | Al/PET tape |
Environmental specifications
| Installation temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| EN50575 CPR Cable EuroClass Fire Performance | B2ca |
| EN50575 CPR Cable EuroClass Smoke Rating | s1a |
| EN50575 CPR Cable EuroClass Droplets Rating | d2 |
| EN50575 CPR Cable EuroClass Acidity Rating | a1 |
| Environmental Space | Indoor/Outdoor |
| Jacket UV Resistance | UV stabilized |
Packaging and weights
| Cable weight | 836.000 kg/km | 561.766 lb/kft |
Product classification
| Regional Availability | Europe |
| Product Type | Power cable |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Application | Remote radio head |
| Cable Type | Power |
| Conductor Type, singles | Stranded |
| Conductors, quantity | 2 |
| Construction Type | Discrete power cable |
| Drain Wire Type | Stranded |
| Drain Wire, quantity | 2 |
| Jacket Color | Black |
| Jacket Color, singles | Red | White |
| Outer Shield (Tape) Material | Al/PET tape |
Dimensions
| Cable Length | 500.024 m | 1640.5 ft |
| Diameter Over Jacket | 21.200 mm | 0.8346457 in |
| Conductor Gauge | 35 mm² class 5 |
Electrical specifications
| Conductor dc Resistance Note | Maximum value based on a standard condition of 20 °C (68 °F) |
| Safety Voltage Rating | 900 V |
Material specifications
| Ground Wire Material | Annealed aluminum wires |
| Jacket Material | Flame retardant PE |
| Outer Shield (Tape) Material | Al/PET tape |
Environmental specifications
| Installation temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| EN50575 CPR Cable EuroClass Fire Performance | B2ca |
| EN50575 CPR Cable EuroClass Smoke Rating | s1a |
| EN50575 CPR Cable EuroClass Droplets Rating | d2 |
| EN50575 CPR Cable EuroClass Acidity Rating | a1 |
| Environmental Space | Indoor/Outdoor |
| Jacket UV Resistance | UV stabilized |
Packaging and weights
| Cable weight | 836.000 kg/km | 561.766 lb/kft |
