HJBE02IBDAAAAN

  • Available in:
  • Asia
  • Australia/New Zealand
  • China
  • EMEA
  • Europe
  • India
  • Latin America
  • Middle East/Africa
  • North America

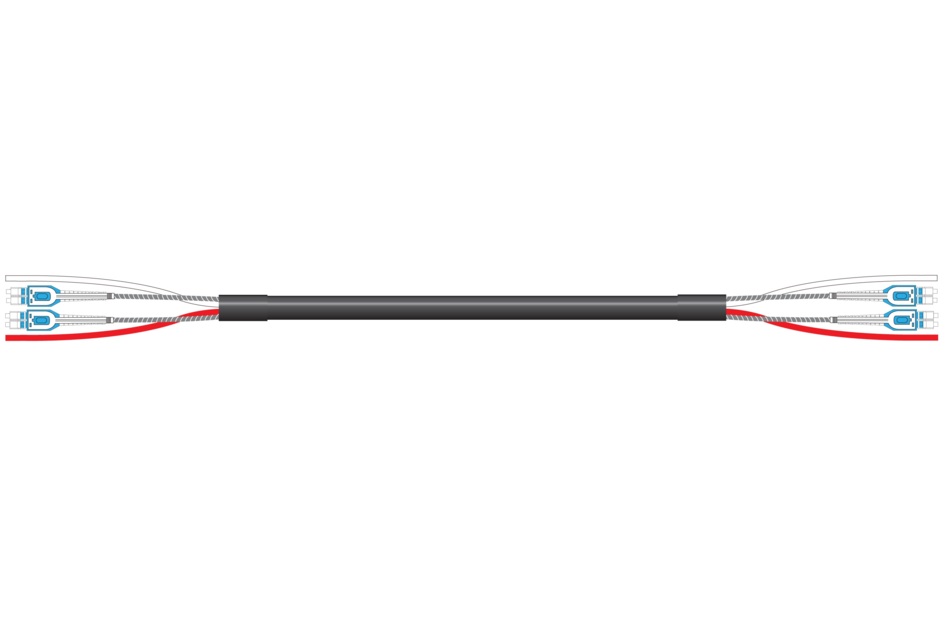

HELIAX® Hybrid Jumper Singlemode B2ca Red/White 2 cores 1.5 mm2 Blunt Cut/Blunt Cut 4 fibers DLC to DLC Breakout length DC/FIBER 170mm No weatherproofing shroud.

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner

Product classification

Regional Availability Asia | Australia/New Zealand | China | EMEA | Europe | India | Latin America | Middle East/Africa | North America
Product Type Hybrid cable assembly
Product Brand HELIAX®
Ordering Note ANDREW® non-standard product

General specifications

Conductors, quantity 2
Construction Type Hybrid standard tail
Interface, Connector A DLC
Interface Feature, connector A Standard
Interface Body Style, connector A Flex angle
Interface, Connector B DLC
Interface Feature, connector B Standard
Interface Body Style, connector B Flex angle
Jacket Color Black
Total Fibers, quantity 2

Dimensions

Breakout Length, connector A 170 mm | 6.693 in
Breakout Length, connector B 170 mm | 6.693 in
Cable Assembly Length Range (ft) 1 – 200
Diameter Over Jacket 11.7 mm | 0.461 in
Center Conductor Gauge 1.5 mm²

Mechanical specifications

Minimum Bend Radius 117 mm | 4.606 in
Minimum Bend Radius, furcation 30 mm | 1.181 in

Optical specifications

Fiber Mode Singlemode
Fiber Type G.657.A2
Insertion Loss, typical note Insertion loss is measured at 1310 and 1550 nm
Insertion Loss, typical 0.5 dB

Environmental specifications

Operating Temperature -40 °C to +75 °C (-40 °F to +167 °F)

Packaging and weights

Cable weight 0.086 kg/m | 0.058 lb/ft

Product classification

Regional Availability Asia | Australia/New Zealand | China | EMEA | Europe | India | Latin America | Middle East/Africa | North America
Product Type Hybrid cable assembly
Product Brand HELIAX®
Ordering Note ANDREW® non-standard product

General specifications

Conductors, quantity 2
Construction Type Hybrid standard tail
Interface, Connector A DLC
Interface Feature, connector A Standard
Interface Body Style, connector A Flex angle
Interface, Connector B DLC
Interface Feature, connector B Standard
Interface Body Style, connector B Flex angle
Jacket Color Black
Total Fibers, quantity 2

Dimensions

Breakout Length, connector A 170 mm | 6.693 in
Breakout Length, connector B 170 mm | 6.693 in
Cable Assembly Length Range (ft) 1 – 200
Diameter Over Jacket 11.7 mm | 0.461 in
Center Conductor Gauge 1.5 mm²

Mechanical specifications

Minimum Bend Radius 117 mm | 4.606 in
Minimum Bend Radius, furcation 30 mm | 1.181 in

Optical specifications

Fiber Mode Singlemode
Fiber Type G.657.A2
Insertion Loss, typical note Insertion loss is measured at 1310 and 1550 nm
Insertion Loss, typical 0.5 dB

Environmental specifications

Operating Temperature -40 °C to +75 °C (-40 °F to +167 °F)

Packaging and weights

Cable weight 0.086 kg/m | 0.058 lb/ft
