HFT206-4SNOK7

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

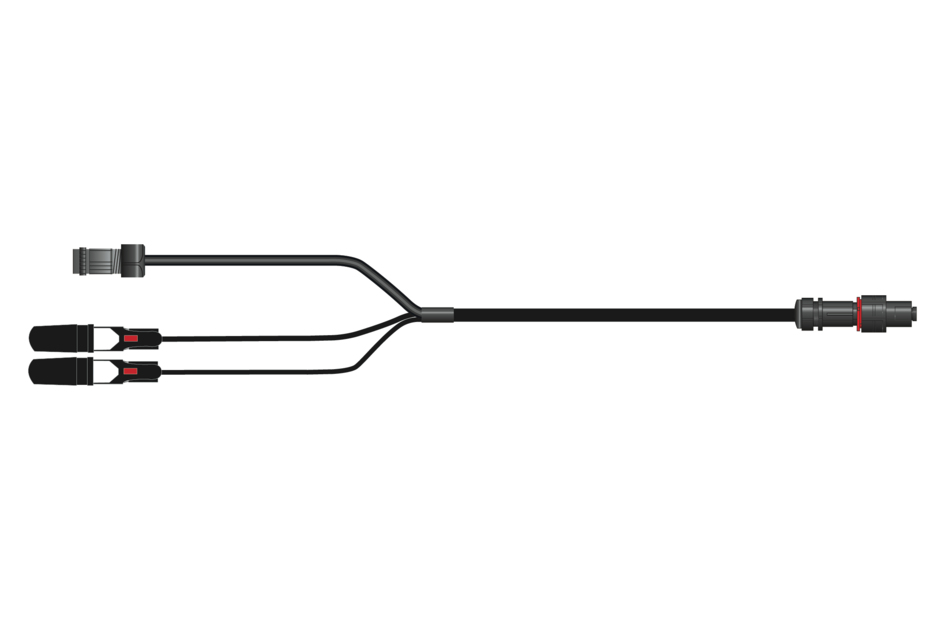

HELIAX® Hybrid Jumper Cable Assembly. RRU end; 4 fibers LC Duplex with AOPE OCTIS weather shrouds, 2 x 6AWG DC conductors with 55A power connector installed. Enclosure end; 4 fibers LC Duplex and 2 x 6AWG conductors terminated in IP25 connector

Finish making your selections or clear them to view relevant specifications.

Download specifications

Find a partner

Configure product variants

Product variants

Configure and display product variants of HFT206-4SNOK7 by selecting options

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Cable Assembly Length

Part Number	Cable Assembly Length
No configured items found.

Specifications

Product classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Product Type	Hybrid cable assembly
Product Brand	HELIAX®
Product Series	HFT
Ordering Note	ANDREW® non-standard product

General specifications

Conductors, quantity	2
Construction Type	Hybrid standard tail
Interface, Connector A	DLC
Interface Feature, connector A	Outdoor
Interface Body Style, connector A	Straight
Interface, Connector B	IP-LC
Interface Feature, connector B	Outdoor
Interface Body Style, connector B	Straight
Jacket Color	Black
Total Fibers, quantity	4

Dimensions

Cable Assembly Length Range (ft)	15 – 200
Diameter Over Jacket	17.06 mm \| 0.672 in
Center Conductor Gauge	6 AWG

Ordering tree

Click on image to enlarge.

Mechanical specifications

Minimum Bend Radius

170.6 mm | 6.717 in

Optical specifications

Fiber Mode	Singlemode
Fiber Type	G.657.A2
Insertion Loss, typical note	Insertion loss is measured at 1310 and 1550 nm
Insertion Loss, typical	0.65 dB

Environmental specifications

Operating Temperature

-40 °C to +75 °C (-40 °F to +167 °F)

Packaging and weights

Cable weight

0.5 kg/m | 0.336 lb/ft

Regulatory compliance/certifications

Agency	Classification
CHINA-ROHS	Below maximum concentration value
ROHS	Compliant
UK-ROHS	Compliant
REACH-SVHC	Compliant as per SVHC revision on www.andrew.com/ProductCompliance
