  6. HFDC-24FIBER-P24M
Warning Icon

For other alternatives, please contact us for more information.

0 Alternative products available

HFDC-24FIBER-P24M

  • Available in:
  • China
  • EMEA
  • Europe
  • India
  • Latin America
  • Middle East/Africa
  • North America

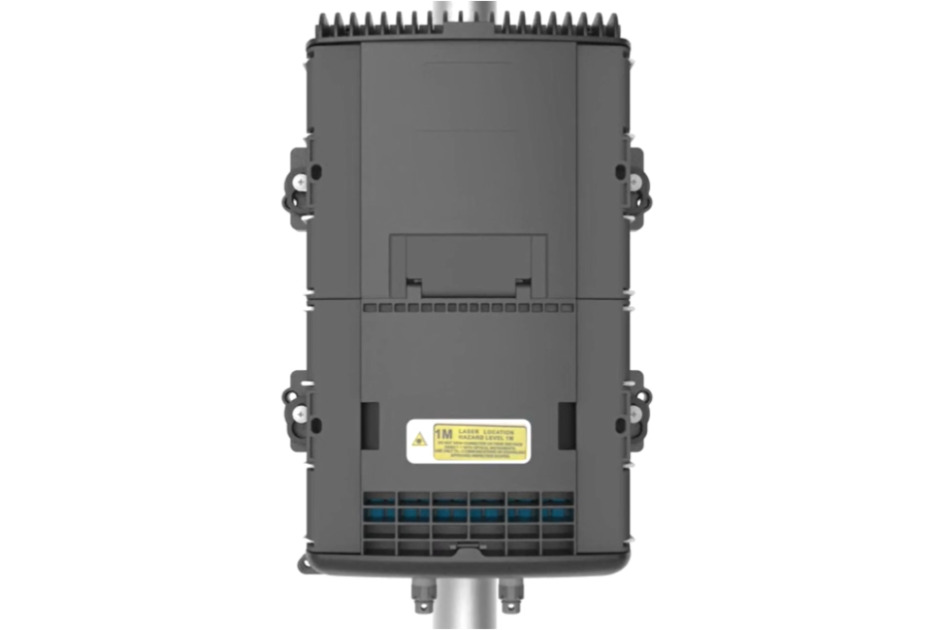

HELIAX® Fiber Distribution Closure 24 fibers Multi Mode

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner
Features and benefits
HELIAX® Fiber Distribution Closure 24 fibers Multi Mode.2 HMFOC 12 fibers + additional 2 entries

Product classification

Regional Availability China | EMEA | Europe | India | Latin America | Middle East/Africa | North America
Product Type Fiber distribution closure
Product Brand HELIAX®

General specifications

Application Used as a fiber junction box
Total Fiber Adapters 12
Color Black
Doors, quantity 2
Mounting Pipe, 44–114 mm (1.75–4.5 in) OD | Wall
Total Fibers, quantity 24
Total Ports, quantity 12

Dimensions

Height 370 mm | 14.567 in
Width 214 mm | 8.425 in
Depth 118 mm | 4.646 in
Jumper Breakout Length, Maximum 85 mm | 3.346 in
Jumper Outlet, Quantity, Maximum 12 mm
Jumper Outlet Diameter, Minimum 0 mm | 0.000 in
Jumper Outlet Diameter, Maximum 7 mm | 0.276 in
Trunk Entry, Diameter, Minimum 5.5 mm | 0.217 in
Trunk Entry, Diameter, Maximum 17.5 mm | 0.689 in
Trunk Entry, Quantity, Maximum 4 mm

Material specifications

Material Type High-impact polycarbonate, UV resistant

Mechanical specifications

Impact Test Method EN62262 | IEC62262: IK07

Environmental specifications

Operating Temperature -40 °C to +75 °C (-40 °F to +167 °F)
Qualification Standards IEC 60529, IP68

Packaging and weights

Included Mounting kit
Weight, net 2.88 kg | 6.349 lb

Product classification

Regional Availability China | EMEA | Europe | India | Latin America | Middle East/Africa | North America
Product Type Fiber distribution closure
Product Brand HELIAX®

General specifications

Application Used as a fiber junction box
Total Fiber Adapters 12
Color Black
Doors, quantity 2
Mounting Pipe, 44–114 mm (1.75–4.5 in) OD | Wall
Total Fibers, quantity 24
Total Ports, quantity 12

Dimensions

Height 370 mm | 14.567 in
Width 214 mm | 8.425 in
Depth 118 mm | 4.646 in
Jumper Breakout Length, Maximum 85 mm | 3.346 in
Jumper Outlet, Quantity, Maximum 12 mm
Jumper Outlet Diameter, Minimum 0 mm | 0.000 in
Jumper Outlet Diameter, Maximum 7 mm | 0.276 in
Trunk Entry, Diameter, Minimum 5.5 mm | 0.217 in
Trunk Entry, Diameter, Maximum 17.5 mm | 0.689 in
Trunk Entry, Quantity, Maximum 4 mm

Material specifications

Material Type High-impact polycarbonate, UV resistant

Mechanical specifications

Impact Test Method EN62262 | IEC62262: IK07

Environmental specifications

Operating Temperature -40 °C to +75 °C (-40 °F to +167 °F)
Qualification Standards IEC 60529, IP68

Packaging and weights

Included Mounting kit
Weight, net 2.88 kg | 6.349 lb
