CS-PRWCN-XL

Base product: COLD-SHRINK-SERIES

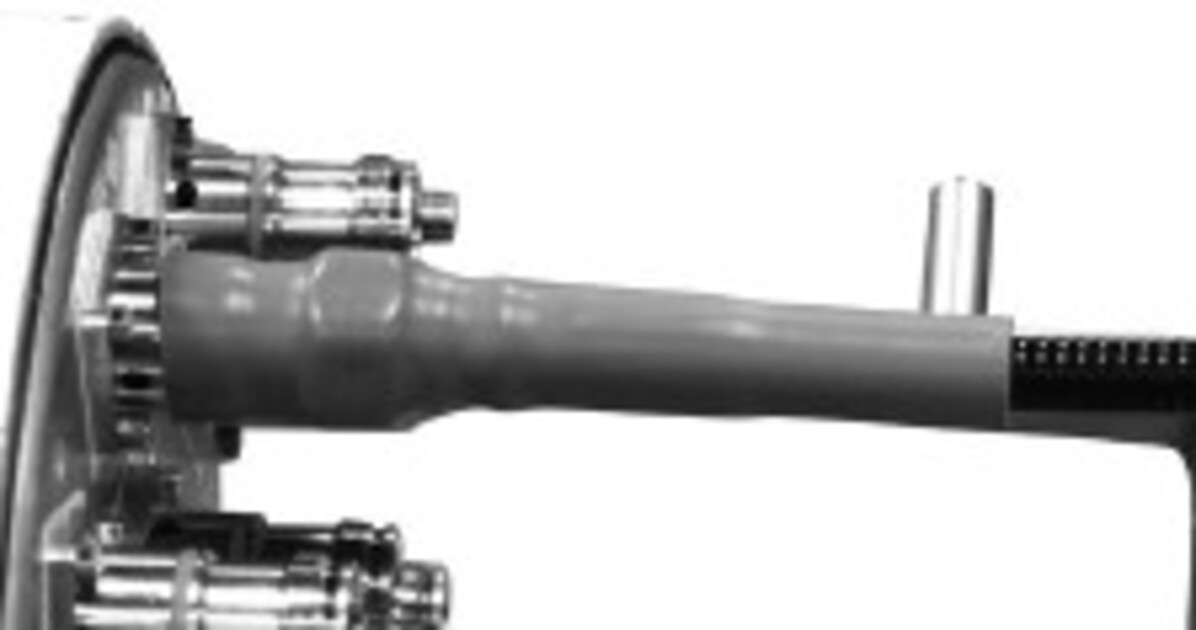

Cold shrink kit for Large Ericsson RRU power connector or for 40 mm (1.57 in) cables to 12 mm (0.47 in) connections

Finish making your selections or clear them to view relevant specifications.
Find a partner

Product classification

Product Type Cold shrink kit
Product Brand HELIAX®
Ordering Note ANDREW® standard product (Global)

General specifications

Application Protects connector from corrosion
Color Black

Dimensions

Length 152.4 mm | 6 in
Cable Diameter for Seal, maximum 40 mm | 1.575 in
Cable Diameter for Seal, minimum 12 mm | 0.472 in

Material specifications

Material Type Silicone rubber

Environmental specifications

UV Resistance Test Method UV condensation reference ASTM-G-53, light source UVA 340 fluorescent lamp
UV Resistance, minimum with no degradation ≥2000 hours
Weather Resistance Test Method 04AS00-03.6.0 | IEC 60529:2001, IP67 | MIL-STD-1344A, Method 1002

Packaging and weights

Height, packed 50.8 mm | 2 in
Width, packed 50.8 mm | 2 in
Length, packed 177.8 mm | 7 in
Included One Silicone Rubber Tube
Packaging quantity 1
Weight, gross 0.08 kg | 0.176 lb

Product classification

Product Type Cold shrink kit
Product Brand HELIAX®
Ordering Note ANDREW® standard product (Global)

General specifications

Application Protects connector from corrosion
Color Black

Dimensions

Length 152.4 mm | 6 in
Cable Diameter for Seal, maximum 40 mm | 1.575 in
Cable Diameter for Seal, minimum 12 mm | 0.472 in

Material specifications

Material Type Silicone rubber

Environmental specifications

UV Resistance Test Method UV condensation reference ASTM-G-53, light source UVA 340 fluorescent lamp
UV Resistance, minimum with no degradation ≥2000 hours
Weather Resistance Test Method 04AS00-03.6.0 | IEC 60529:2001, IP67 | MIL-STD-1344A, Method 1002

Packaging and weights

Height, packed 50.8 mm | 2 in
Width, packed 50.8 mm | 2 in
Length, packed 177.8 mm | 7 in
Included One Silicone Rubber Tube
Packaging quantity 1
Weight, gross 0.08 kg | 0.176 lb

Installation instruction

Cold shrink kit CS-PWRCN
