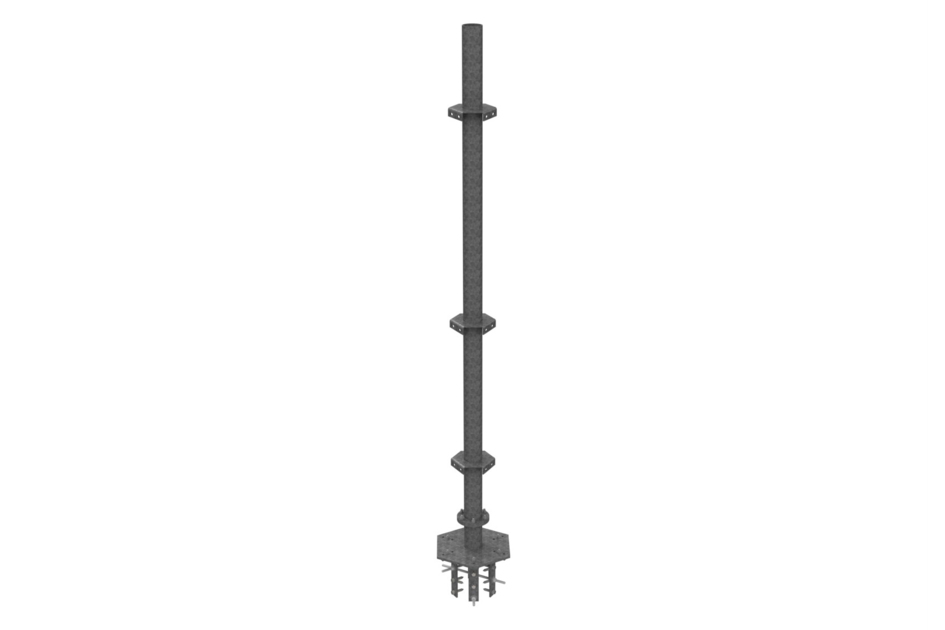

WP-TM-B
Wood Pole Top Mast, 7 in to 14 in wood poles
Specifications
Product classification
| Product Type | Wood pole mount |
General specifications
| Mounting | Wood pole, 177.8–355.6 mm (7–14 in) OD |
| Pipe, quantity | 0 |
| Sectors, quantity | 1 |
Dimensions
| Height | 355.6 mm | 14 in |
| Length | 2438.4 mm | 96 in |
| Mounting Diameter, maximum | 355.6 mm | 14 in |
| Mounting Diameter, minimum | 177.8 mm | 7 in |
| Pipe Outer Diameter | 60.96 mm | 2.4 in |
| Mounting Circumference, maximum | 353.06 mm | 13.9 in |
| Mounting Circumference, minimum | 175.26 mm | 6.9 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Mast | Wood pole mount |
| Packaging quantity | 1 |
| Weight, net | 102.104 kg | 225.1 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Wood pole mount |
General specifications
| Mounting | Wood pole, 177.8–355.6 mm (7–14 in) OD |
| Pipe, quantity | 0 |
| Sectors, quantity | 1 |
Dimensions
| Height | 355.6 mm | 14 in |
| Length | 2438.4 mm | 96 in |
| Mounting Diameter, maximum | 355.6 mm | 14 in |
| Mounting Diameter, minimum | 177.8 mm | 7 in |
| Pipe Outer Diameter | 60.96 mm | 2.4 in |
| Mounting Circumference, maximum | 353.06 mm | 13.9 in |
| Mounting Circumference, minimum | 175.26 mm | 6.9 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Packaging and weights
| Included | Mast | Wood pole mount |
| Packaging quantity | 1 |
| Weight, net | 102.104 kg | 225.1 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
