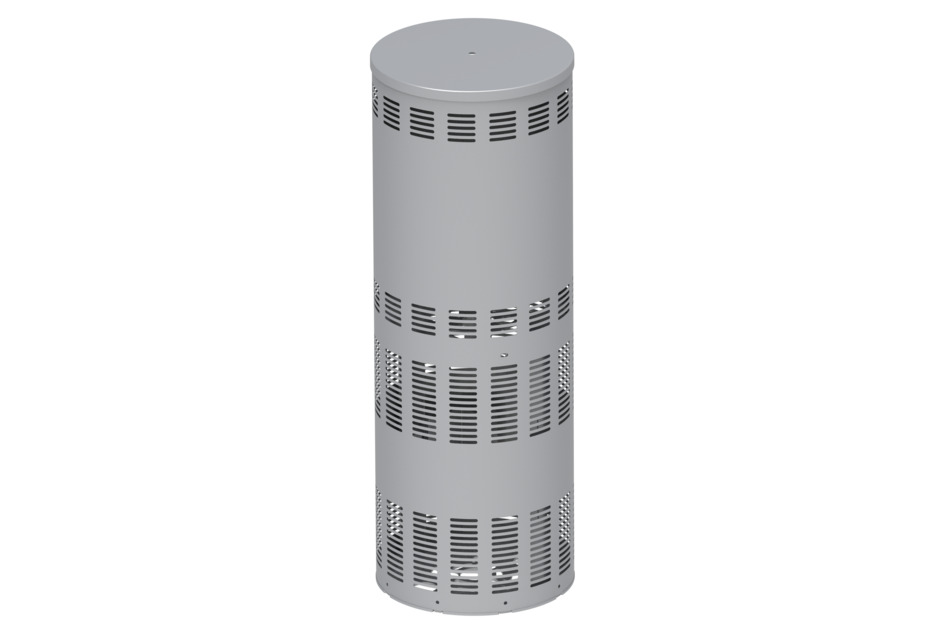

860670696-002 | PT22 - 4G and 5G C-Band Concealment
PT22: 22 in OD x 65" Tall Pole Top Concealment for 5G and 4G Equipment
Product variants
Configure and display product variants of 860670696-002 | PT22 - 4G and 5G C-Band Concealment by selecting options
Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.
| Part Number | Enclosure Color | ||
|---|---|---|---|
| No configured items found. | |||
Features and benefits
-Pole Top Concealment that fully conceals 4G & 5G antenna and equipment.
-Also supports active C-Band equipment
-Material fully conceals equipment and allows RF frequencies to pass through
-Multi-Tenant Capabilities
-Please reach out to your ANDREW Representative for more information
-Also supports active C-Band equipment
-Material fully conceals equipment and allows RF frequencies to pass through
-Multi-Tenant Capabilities
-Please reach out to your ANDREW Representative for more information
- Variable pole diameter mounting kits available to mount to existing structures
- Matching light pole or monopole options available
Specifications
Product classification
| Product Type | Pole top |
| Product Brand | Metro Cell |
| Ordering Note | ANDREW® non-standard product |
| Warranty | One year |
General specifications
| Antenna Compatibility, ANDREW | ANDREW Canister Antennas |
| Antenna Compatibility, Other Vendors | ACE | AMPHENOL | GALTRONICS | GAMMA NU | JMA | KATHREIN | KMW | ROSENBERGER |
| Antennas Included | None |
| Color | Light Gray (RAL 7035) |
| Color Options | Black (RAL 9005) | Brown (RAL 8014) |
| Cooling | Fan Cooling | Passive Cooling |
| Mounting Options | Fluted poles | Metal poles | Non-tapered poles | Tapered poles | Wood poles |
| Power Supply Compatibility | 6308 |
| Radio Compatibility, Ericsson | 4461 | 4490 | 4890 |
| Radios Included | None |
Dimensions
| Height | 1651.000 mm | 65 in |
| Width | 558.800 mm | 22 in |
Material specifications
| Material Type | Aluminum | Plastic | Steel |
Environmental specifications
| Thermal Compliance | GR-487 |
Packaging and weights
| Packaging quantity | 1 |
| Weight (unloaded) | 49.442 kg | 109 lb |
Product classification
| Product Type | Pole top |
| Product Brand | Metro Cell |
| Ordering Note | ANDREW® non-standard product |
| Warranty | One year |
General specifications
| Antenna Compatibility, ANDREW | ANDREW Canister Antennas |
| Antenna Compatibility, Other Vendors | ACE | AMPHENOL | GALTRONICS | GAMMA NU | JMA | KATHREIN | KMW | ROSENBERGER |
| Antennas Included | None |
| Color | Light Gray (RAL 7035) |
| Color Options | Black (RAL 9005) | Brown (RAL 8014) |
| Cooling | Fan Cooling | Passive Cooling |
| Mounting Options | Fluted poles | Metal poles | Non-tapered poles | Tapered poles | Wood poles |
| Power Supply Compatibility | 6308 |
| Radio Compatibility, Ericsson | 4461 | 4490 | 4890 |
| Radios Included | None |
Dimensions
| Height | 1651.000 mm | 65 in |
| Width | 558.800 mm | 22 in |
Material specifications
| Material Type | Aluminum | Plastic | Steel |
Environmental specifications
| Thermal Compliance | GR-487 |
Packaging and weights
| Packaging quantity | 1 |
| Weight (unloaded) | 49.442 kg | 109 lb |
