F-122-GL
Fixed Tilt Pipe Mounting Kit for 2.9"-4.5" (75-115mm) OD round members for panel antennas. Includes 2 clamp sets.
Specifications
Product classification
| Product Type | Pipe mounting kit |
General specifications
| Application | Outdoor |
| Color | Silver |
Dimensions
| Compatible Diameter, maximum | 115 mm | 4.528 in |
| Compatible Diameter, minimum | 75 mm | 2.953 in |

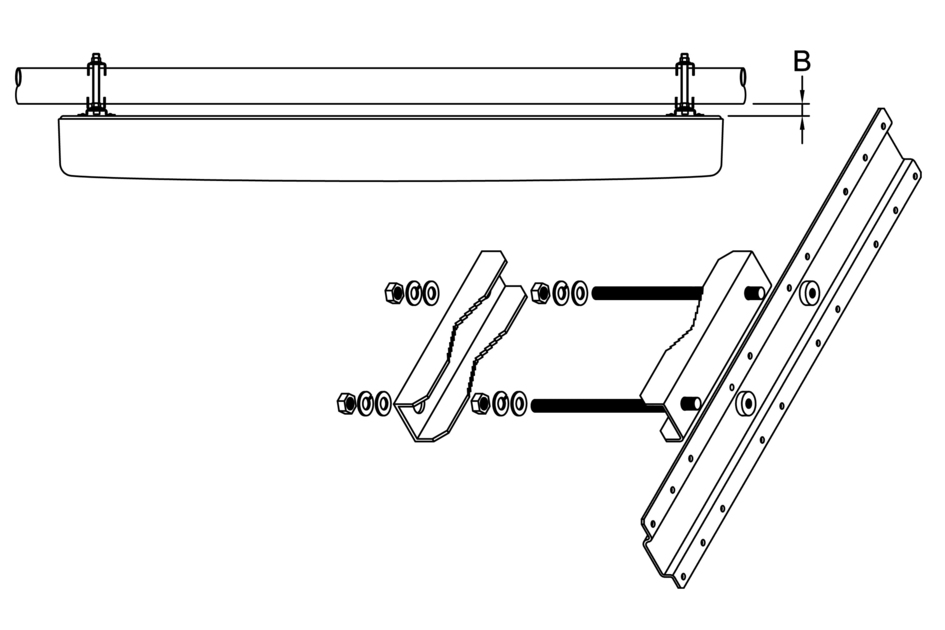

| Antenna-to-Pipe Distance | 30 mm | 1.181 in |
| Weight, net | 2.5 kg | 5.512 lb |
Material specifications
| Material Type | Galvanized steel |
Packaging and weights
| Included | Brackets | Hardware |
| Packaging quantity | 2 |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Pipe mounting kit |
General specifications
| Application | Outdoor |
| Color | Silver |
Dimensions
| Compatible Diameter, maximum | 115 mm | 4.528 in |
| Compatible Diameter, minimum | 75 mm | 2.953 in |
| Antenna-to-Pipe Distance | 30 mm | 1.181 in |
| Weight, net | 2.5 kg | 5.512 lb |
Material specifications
| Material Type | Galvanized steel |
Packaging and weights
| Included | Brackets | Hardware |
| Packaging quantity | 2 |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
