F-074-S4
Fixed Tilt Pipe Mounting Kit for 2.0"-4.5" (50-115mm) OD round members for panel antennas. Includes 2 clamp sets.
Specifications
Product classification
| Product Type | Pipe mounting kit |
General specifications
| Application | Outdoor |
| Color | Silver |
Dimensions

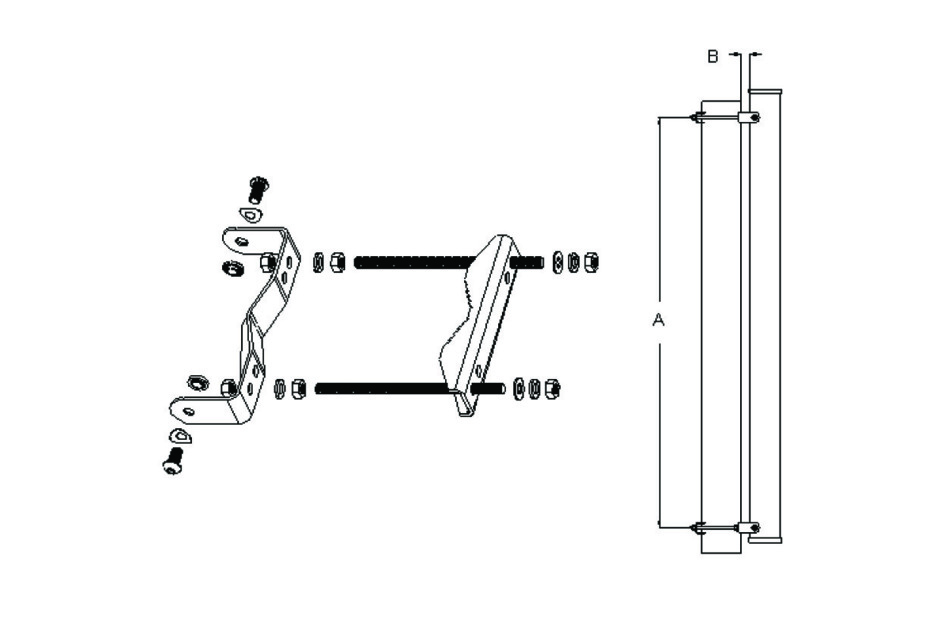

| Compatible Length, maximum | 2150 mm | 84.646 in |
| Compatible Length, minimum | 0 mm | 0 in |
| Compatible Diameter, maximum | 115 mm | 4.528 in |
| Compatible Diameter, minimum | 50 mm | 1.969 in |
| Antenna-to-Pipe Distance | 19 mm | 0.748 in |
| Weight, net | 1.5 kg | 3.307 lb |
Material specifications
| Material Type | Galvanized steel | Stainless steel |
Packaging and weights
| Included | Brackets | Hardware |
| Packaging quantity | 2 |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Pipe mounting kit |
General specifications
| Application | Outdoor |
| Color | Silver |
Dimensions
| Compatible Length, maximum | 2150 mm | 84.646 in |
| Compatible Length, minimum | 0 mm | 0 in |
| Compatible Diameter, maximum | 115 mm | 4.528 in |
| Compatible Diameter, minimum | 50 mm | 1.969 in |
| Antenna-to-Pipe Distance | 19 mm | 0.748 in |
| Weight, net | 1.5 kg | 3.307 lb |
Material specifications
| Material Type | Galvanized steel | Stainless steel |
Packaging and weights
| Included | Brackets | Hardware |
| Packaging quantity | 2 |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
