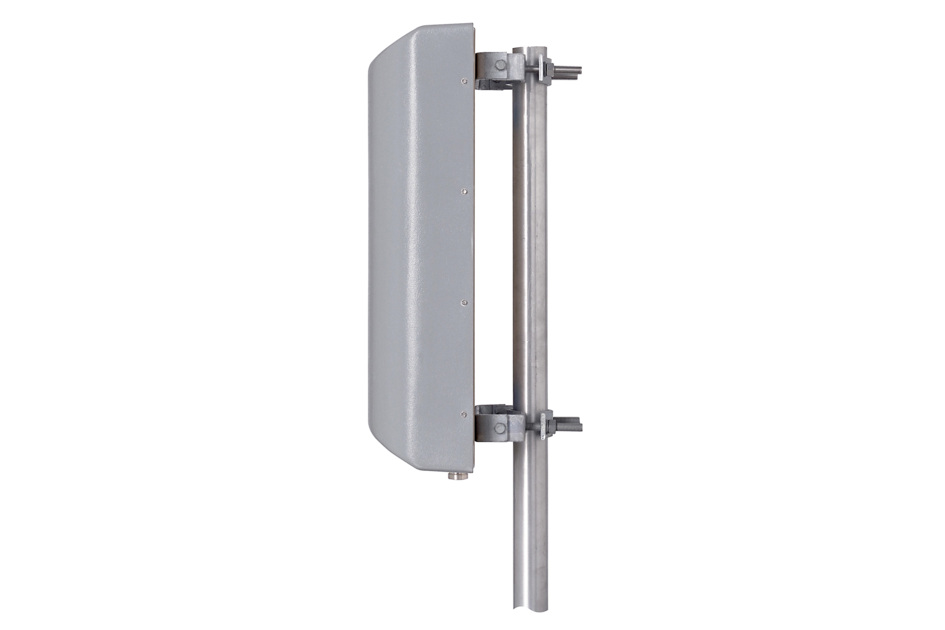

DB380
Pipe Mounting Kit for 2.4"-4.5" (60-115mm) OD round members on wide panel antennas. Includes 2 clamp sets and double nuts.
Specifications
Product classification
| Product Type | Pipe mounting kit |
General specifications
| Application | Outdoor |
| Color | Silver |
Dimensions
| Compatible Diameter, maximum | 114.3 mm | 4.5 in |
| Compatible Diameter, minimum | 61 mm | 2.402 in |
| Weight, net | 2.8 kg | 6.173 lb |
Material specifications
| Material Type | Galvanized steel |
Packaging and weights
| Included | Brackets | Hardware |
| Packaging quantity | 1 |
| Weight, gross | 3 kg | 6.614 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Pipe mounting kit |
General specifications
| Application | Outdoor |
| Color | Silver |
Dimensions
| Compatible Diameter, maximum | 114.3 mm | 4.5 in |
| Compatible Diameter, minimum | 61 mm | 2.402 in |
| Weight, net | 2.8 kg | 6.173 lb |
Material specifications
| Material Type | Galvanized steel |
Packaging and weights
| Included | Brackets | Hardware |
| Packaging quantity | 1 |
| Weight, gross | 3 kg | 6.614 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
