V4-360S-HG-F2
8-port small cell antenna, 8x 1695–2690, 360° Horizontal Beamwidth, fixed tilt.
Specifications
General specifications
| Antenna Type | Omni |
| Band | Multiband |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 8 |
| RF Connector Quantity, total | 8 |
Dimensions
| Length | 610 mm | 24.016 in |
| Net Weight, without mounting kit | 15 kg | 33.069 lb |
| Outer Diameter | 370 mm | 14.567 in |

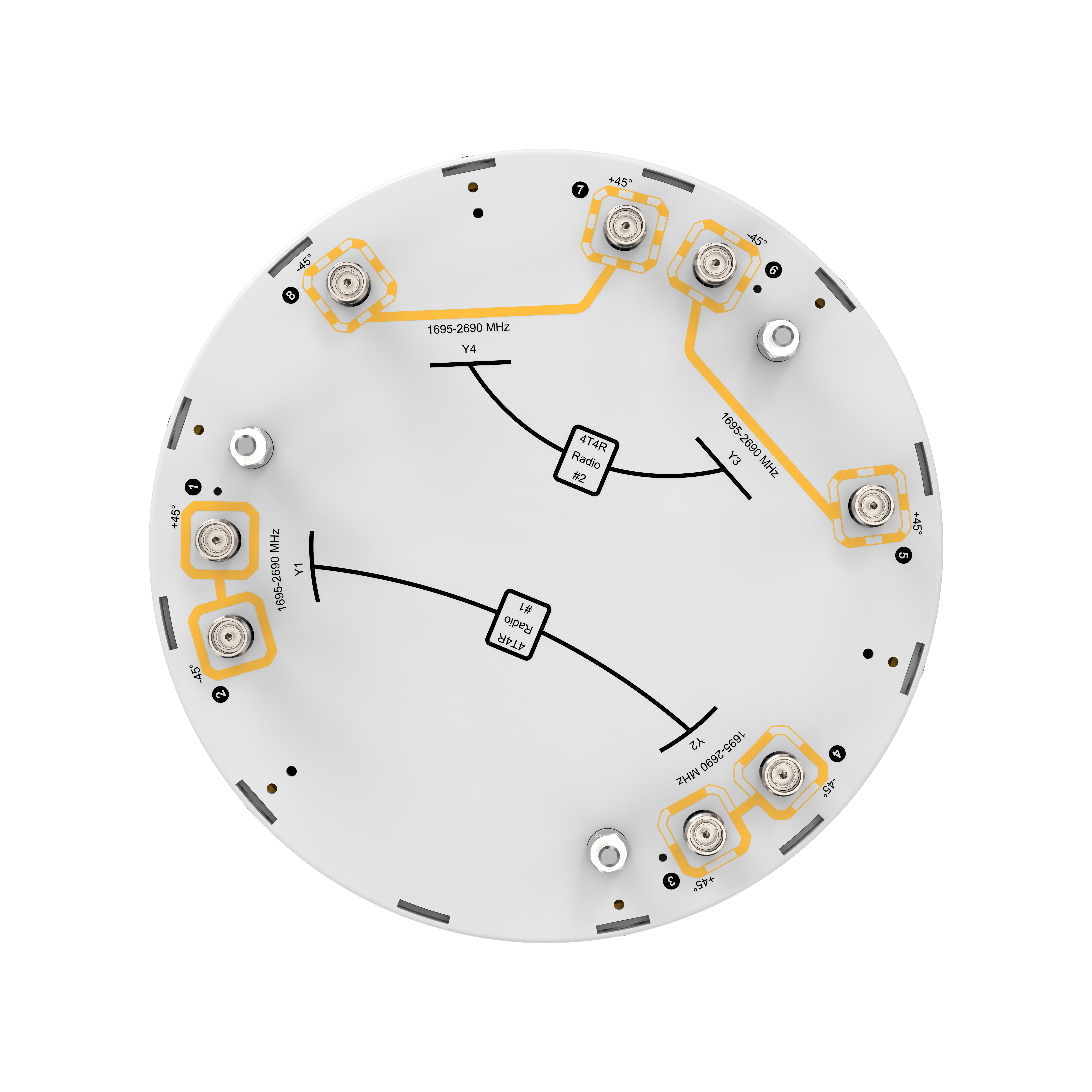

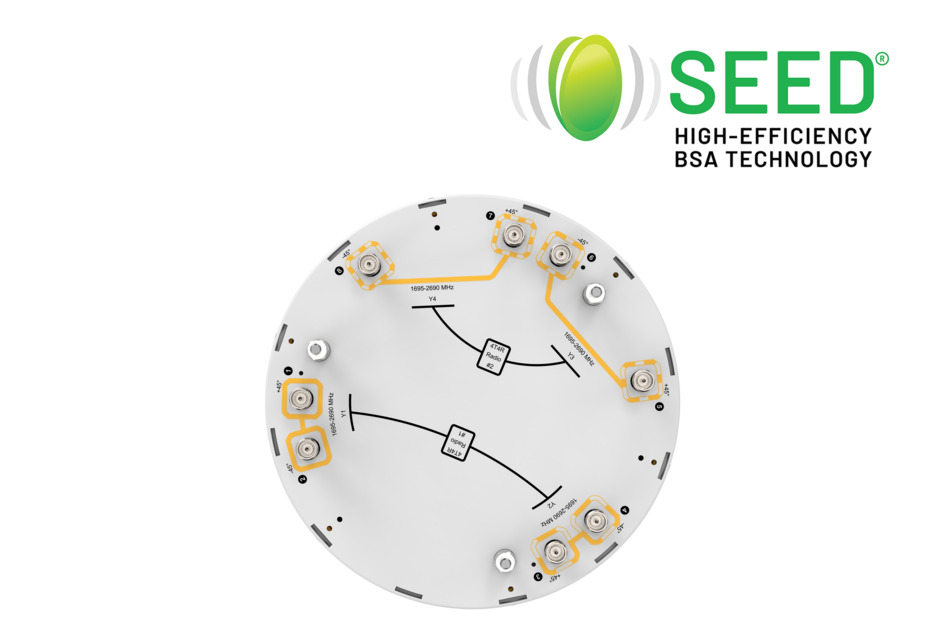

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 500 W @ 50 °C |
Electrical specifications
| Y1,Y2,Y3,Y4 | Y1,Y2,Y3,Y4 | Y1,Y2,Y3,Y4 | Y1,Y2,Y3,Y4 | |
| Frequency Band, MHz | 1695–1880 | 1850–1990 | 1920–2200 | 2360–2690 |
| RF Port | 1-8 | 1-8 | 1-8 | 1-8 |
| Gain, Maximum, dBi | 12.200 | 11.800 | 12.000 | 12.800 |
| Gain, dBi | 10.5 | 10.5 | 10.5 | 10.9 |
| Beamwidth, Horizontal, degrees | 360 | 360 | 360 | 360 |
| Beamwidth, Vertical, degrees | 14.6 | 13.8 | 12.8 | 10.8 |
| Beam Tilt, degrees | 2 | 2 | 2 | 2 |
| USLS (First Lobe), dB | 12 | 12 | 12 | 12 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 100 | 100 | 100 | 100 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 129.0 N @ 150 km/h (29.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 129.0 N @ 150 km/h (29.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 129.0 N @ 150 km/h (29.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 129.0 N @ 150 km/h (29.0 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 478 mm | 18.819 in |
| Depth, packed | 464 mm | 18.268 in |
| Length, packed | 894 mm | 35.197 in |
| Weight, gross | 19.4 kg | 42.770 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| UK-ROHS | Compliant |
General specifications
| Antenna Type | Omni |
| Band | Multiband |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 8 |
| RF Connector Quantity, total | 8 |
Dimensions
| Length | 610 mm | 24.016 in |
| Net Weight, without mounting kit | 15 kg | 33.069 lb |
| Outer Diameter | 370 mm | 14.567 in |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 500 W @ 50 °C |
Electrical specifications
| Y1,Y2,Y3,Y4 | Y1,Y2,Y3,Y4 | Y1,Y2,Y3,Y4 | Y1,Y2,Y3,Y4 | |
| Frequency Band, MHz | 1695–1880 | 1850–1990 | 1920–2200 | 2360–2690 |
| RF Port | 1-8 | 1-8 | 1-8 | 1-8 |
| Gain, Maximum, dBi | 12.200 | 11.800 | 12.000 | 12.800 |
| Gain, dBi | 10.5 | 10.5 | 10.5 | 10.9 |
| Beamwidth, Horizontal, degrees | 360 | 360 | 360 | 360 |
| Beamwidth, Vertical, degrees | 14.6 | 13.8 | 12.8 | 10.8 |
| Beam Tilt, degrees | 2 | 2 | 2 | 2 |
| USLS (First Lobe), dB | 12 | 12 | 12 | 12 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 100 | 100 | 100 | 100 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 129.0 N @ 150 km/h (29.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 129.0 N @ 150 km/h (29.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 129.0 N @ 150 km/h (29.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 129.0 N @ 150 km/h (29.0 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 478 mm | 18.819 in |
| Depth, packed | 464 mm | 18.268 in |
| Length, packed | 894 mm | 35.197 in |
| Weight, gross | 19.4 kg | 42.770 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| UK-ROHS | Compliant |
