V17-010-01-A0-E

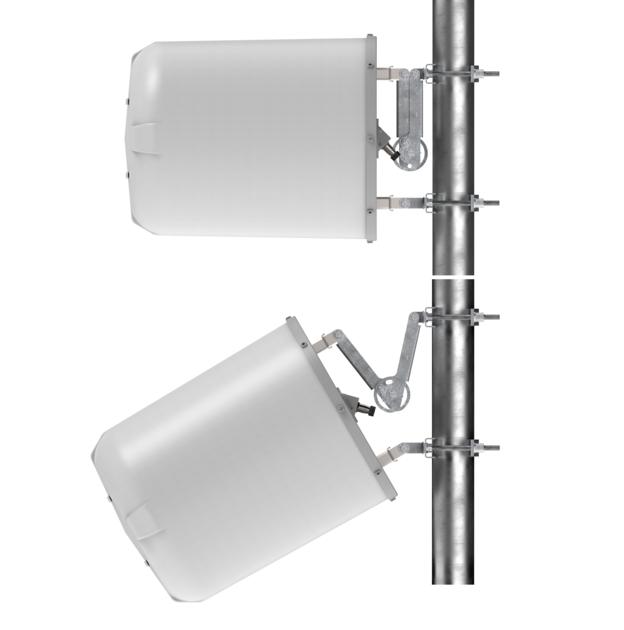

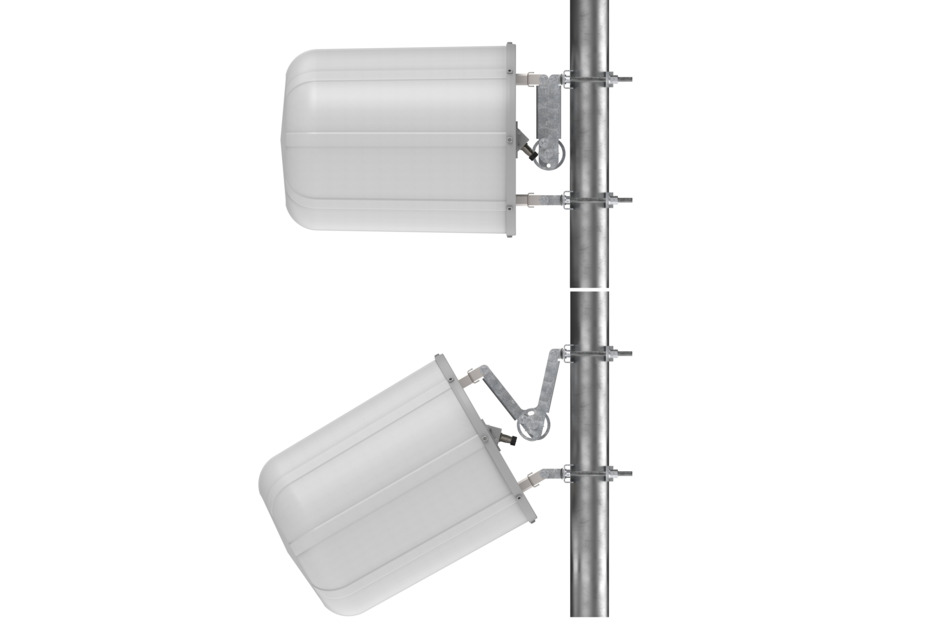

2-port Venue Antenna, 1695-2690 MHz, 17º HPBW, Fixed Tilt

Finish making your selections or clear them to view relevant specifications.

Find a partner

Features and benefits

Specifications

General specifications

Color	White
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Radome Material	ASA, UV resistant

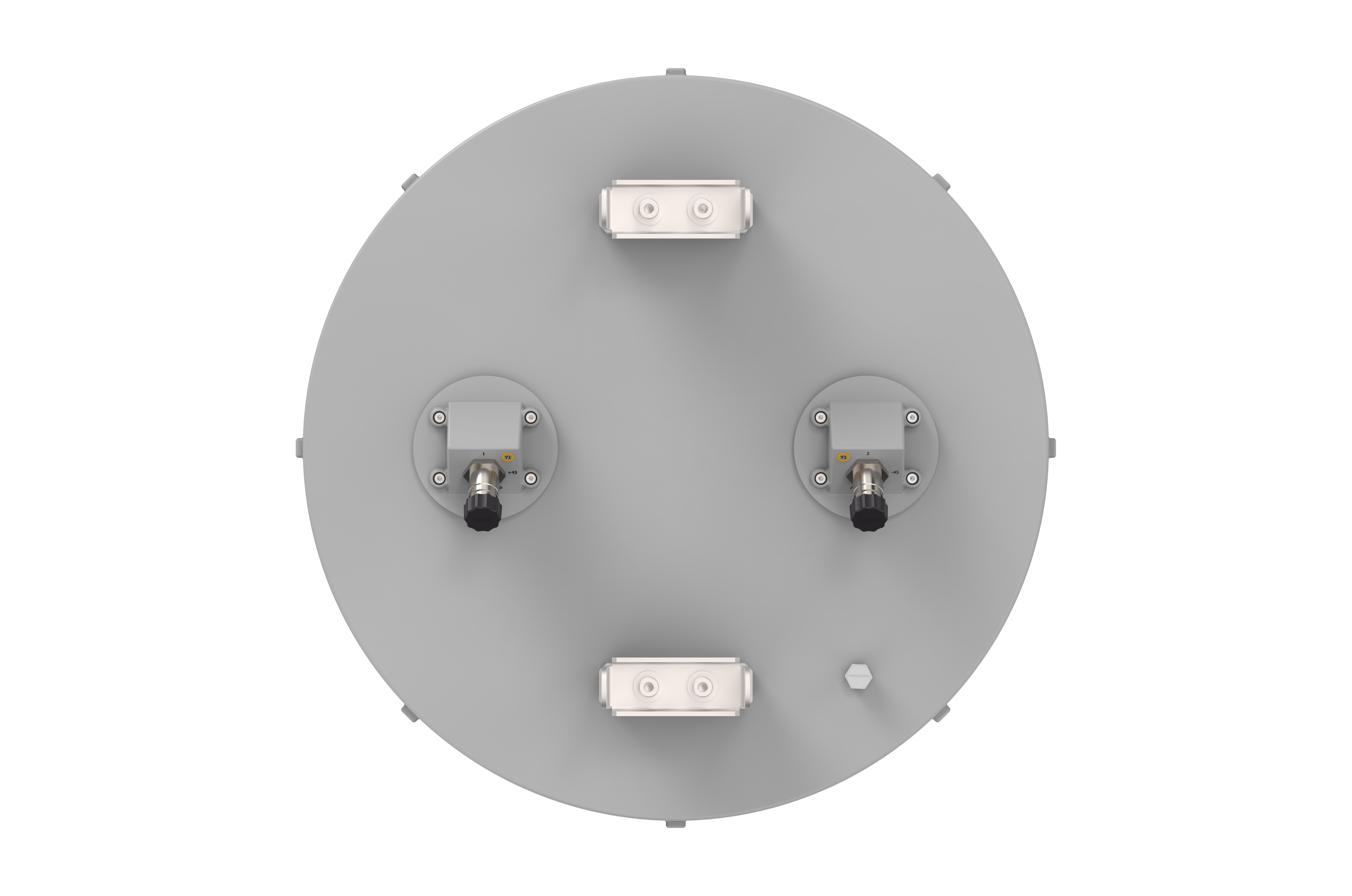

RF Connector Interface	4.3-10 Female
RF Connector Quantity, total	2

Width	503 mm \| 19.803 in
Depth	684 mm \| 26.929 in
Length	503 mm \| 19.803 in
Net Weight, without mounting kit	14 kg \| 30.865 lb

Click on image to enlarge.

Operating Frequency Band	1695 – 2690 MHz
Polarization	±45°

	Y1,Y2	Y1,Y2	Y1,Y2	Y1,Y2
Frequency Band, MHz	1695–1890	1850–1990	1990–2200	2200–2690
RF Port	1,2	1,2	1,2	1,2
Gain, dBi	18.0	18.5	18.9	20.0
Beamwidth, Horizontal, degrees	21	20	19	16
Beamwidth, Vertical, degrees	21	20	19	16
USLS (First Lobe), dB	20	21	21	22
Front-to-Back Ratio at 180°, dB	38	40	40	42
Front-to-Back Ratio, Copolarization 180° ± 30°, dB	33	36	34	30
Isolation, Cross Polarization, dB	25	25	25	25
VSWR \| Return loss, dB	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-153	-153	-153	-153
Input Power per Port, maximum, watts	200	200	200	200

Agency	Classification
UK-ROHS	Compliant
