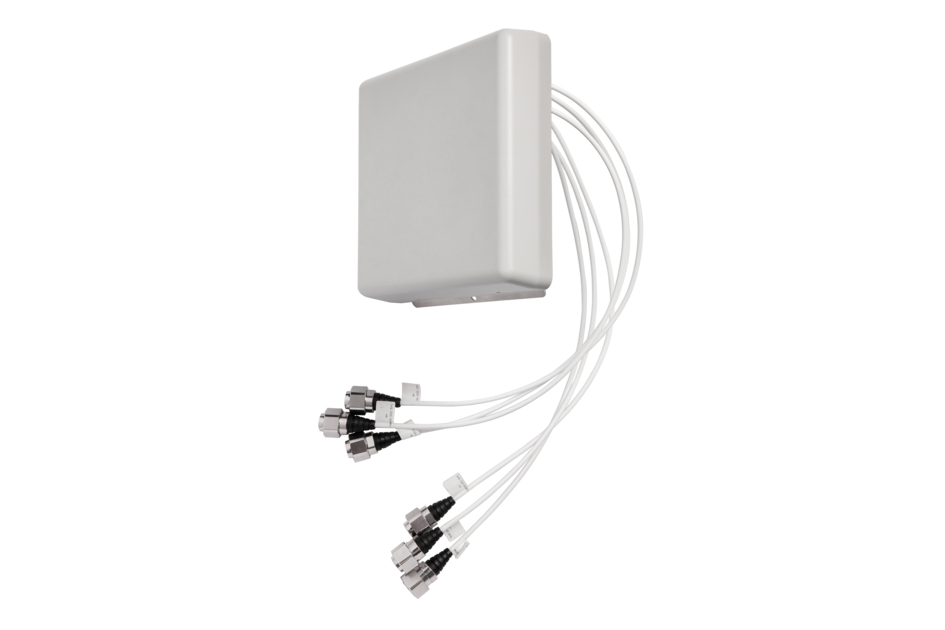

SSP-65T-F
6-port small cell antenna, 4X 3300-3800 MHz, 2X 5150-5925 MHz, 65° HPBW, fixed electrical tilt, 0.5m pigtails
Features and benefits
- Designed for strand mounting with OEM equipment
Specifications
General specifications
| Antenna Type | Small Cell |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | ABS, UV resistant |
| Radiator Material | Low loss circuit board |
| RF Connector Interface | 4.3-10 Male |
| RF Connector Location | End of flexible lead |
| RF Connector Quantity, high band | 6 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 6 |
Dimensions
| Width | 200 mm | 7.874 in |
| Depth | 44 mm | 1.732 in |
| Length | 200 mm | 7.874 in |
| Net Weight, without mounting kit | 1.2 kg | 2.646 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 3300 – 3800 MHz | 5150 – 5925 MHz |
| Polarization | ±45° |
Electrical specifications
| Frequency Band, MHz | 3300–3800 | 5150–5925 |
| Gain, dBi | 11.7 | 3.2 |
| Beamwidth, Horizontal, degrees | 70 | 61 |
| Beamwidth, Vertical, degrees | 27.6 | 24.6 |
| Beam Tilt, degrees | 6 | 6 |
| USLS (First Lobe), dB | 16 | 17 |
| Front-to-Back Ratio at 180°, dB | 29 | 25 |
| CPR at Boresight, dB | 15 | 10 |
| Isolation, Cross Polarization, dB | 22 | 22 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 |
| Input Power per Port, maximum, watts | 50 | 10 |
| Input Power per Port at 50°C, maximum, watts | 50 | 10 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 60.8 N @ 150 km/h (13.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 13.4 N @ 150 km/h (3.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 0.5 N @ 150 km/h (0.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 60.8 N @ 150 km/h (13.7 lbf @ 150 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and weights
| Width, packed | 215 mm | 8.465 in |
| Depth, packed | 95 mm | 3.74 in |
| Length, packed | 210 mm | 8.268 in |
| Weight, gross | 1.3 kg | 2.866 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
General specifications
| Antenna Type | Small Cell |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | ABS, UV resistant |
| Radiator Material | Low loss circuit board |
| RF Connector Interface | 4.3-10 Male |
| RF Connector Location | End of flexible lead |
| RF Connector Quantity, high band | 6 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 6 |
Dimensions
| Width | 200 mm | 7.874 in |
| Depth | 44 mm | 1.732 in |
| Length | 200 mm | 7.874 in |
| Net Weight, without mounting kit | 1.2 kg | 2.646 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 3300 – 3800 MHz | 5150 – 5925 MHz |
| Polarization | ±45° |
Electrical specifications
| Frequency Band, MHz | 3300–3800 | 5150–5925 |
| Gain, dBi | 11.7 | 3.2 |
| Beamwidth, Horizontal, degrees | 70 | 61 |
| Beamwidth, Vertical, degrees | 27.6 | 24.6 |
| Beam Tilt, degrees | 6 | 6 |
| USLS (First Lobe), dB | 16 | 17 |
| Front-to-Back Ratio at 180°, dB | 29 | 25 |
| CPR at Boresight, dB | 15 | 10 |
| Isolation, Cross Polarization, dB | 22 | 22 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 |
| Input Power per Port, maximum, watts | 50 | 10 |
| Input Power per Port at 50°C, maximum, watts | 50 | 10 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 60.8 N @ 150 km/h (13.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 13.4 N @ 150 km/h (3.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 0.5 N @ 150 km/h (0.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 60.8 N @ 150 km/h (13.7 lbf @ 150 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and weights
| Width, packed | 215 mm | 8.465 in |
| Depth, packed | 95 mm | 3.74 in |
| Length, packed | 210 mm | 8.268 in |
| Weight, gross | 1.3 kg | 2.866 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
