RRZZ-33B-R4

8-port multiband sector antenna, 4x 694-960 and 4 x 1427-2690 MHz, 33° HPBW, 4x RET

Finish making your selections or clear them to view relevant specifications.
Find a partner
Features and benefits
  • This 33° HPBW antenna is made for corridor coverage
  • Most common corridor use cases are street and railway coverage
  • Antenna shape optimized for wind load reduction

General specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, mid band 4
RF Connector Quantity, low band 4
RF Connector Quantity, total 8

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET Low band (2) | Mid band (2)
Power Consumption, active state, maximum 10 W
Power Consumption, idle state, maximum 2 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 749 mm | 29.488 in
Depth 197 mm | 7.756 in
Length 2225 mm | 87.598 in
Net Weight, antenna only 56 kg | 123.459 lb

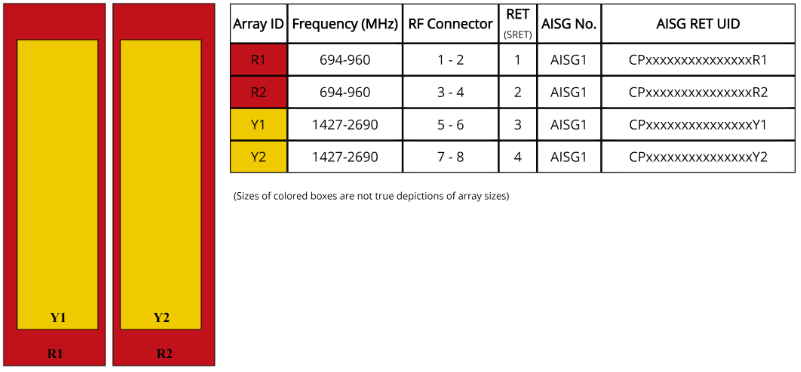

Array layout

Click on image to enlarge.

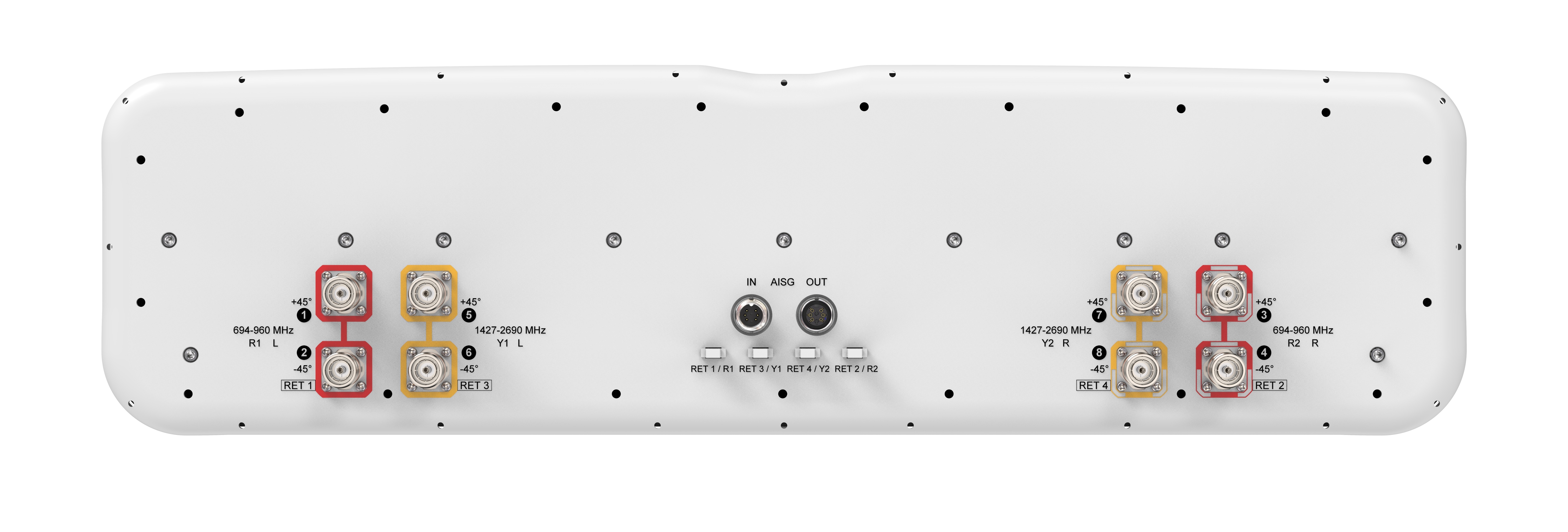

Port configuration

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1427 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical specifications

R1,R2 R1,R2 R1,R2 Y1,Y2 Y1,Y2 Y1,Y2 Y1,Y2 Y1,Y2
Frequency Band, MHz 698–806 790–894 890–960 1427–1518 1695–1995 1920–2300 2300–2500 2490–2690
RF Port 1-4 1-4 1-4 5-8 5-8 5-8 5-8 5-8
Gain, dBi 17.1 17.9 18.5 19.3 21.0 22.0 22.5 22.0
Beamwidth, Horizontal, degrees 36 33 30 36 29 26 24 21
Beamwidth, Vertical, degrees 9.8 8.8 8.1 7.1 5.8 5.2 4.6 4.3
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 16 17 19 17 17 18 19 19
Front-to-Back Ratio at 180°, dB 29 34 35 36 38 38 38 36
Front-to-Back Total Power at 180° ± 30°, dB 21 25 24 29 32 31 32 30
CPR at Boresight, dB 20 19 20 18 23 20 14 16
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153 -153 -153
Input Power per Port at 50°C, maximum, watts 300 300 300 200 200 200 200 200

Mechanical specifications

BASTA Version, mechanical BASTA v12

Packaging and weights

Width, packed 910 mm | 35.827 in
Depth, packed 368 mm | 14.488 in
Length, packed 2723 mm | 107.205 in
Weight, gross 83 kg | 182.983 lb

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
UK-ROHS Compliant

General specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, mid band 4
RF Connector Quantity, low band 4
RF Connector Quantity, total 8

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET Low band (2) | Mid band (2)
Power Consumption, active state, maximum 10 W
Power Consumption, idle state, maximum 2 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 749 mm | 29.488 in
Depth 197 mm | 7.756 in
Length 2225 mm | 87.598 in
Net Weight, antenna only 56 kg | 123.459 lb

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1427 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical specifications

R1,R2 R1,R2 R1,R2 Y1,Y2 Y1,Y2 Y1,Y2 Y1,Y2 Y1,Y2
Frequency Band, MHz 698–806 790–894 890–960 1427–1518 1695–1995 1920–2300 2300–2500 2490–2690
RF Port 1-4 1-4 1-4 5-8 5-8 5-8 5-8 5-8
Gain, dBi 17.1 17.9 18.5 19.3 21.0 22.0 22.5 22.0
Beamwidth, Horizontal, degrees 36 33 30 36 29 26 24 21
Beamwidth, Vertical, degrees 9.8 8.8 8.1 7.1 5.8 5.2 4.6 4.3
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 16 17 19 17 17 18 19 19
Front-to-Back Ratio at 180°, dB 29 34 35 36 38 38 38 36
Front-to-Back Total Power at 180° ± 30°, dB 21 25 24 29 32 31 32 30
CPR at Boresight, dB 20 19 20 18 23 20 14 16
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153 -153 -153
Input Power per Port at 50°C, maximum, watts 300 300 300 200 200 200 200 200

Mechanical specifications

BASTA Version, mechanical BASTA v12

Packaging and weights

Width, packed 910 mm | 35.827 in
Depth, packed 368 mm | 14.488 in
Length, packed 2723 mm | 107.205 in
Weight, gross 83 kg | 182.983 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
UK-ROHS Compliant
