RR2V4-6533D-R10

20-port Sector/Multi beam antenna, 4x 698–960 MHz 65° HPBW and 16x 1710-2690MHz 8x33° HPBW, 10x RET

Finish making your selections or clear them to view relevant specifications.
Find a partner
Features and benefits
  • All Internal RET actuators are connected in “Cascaded SRET” configuration
  • Uses the 4.3-10 connector which is 40 percent smaller than the 7-16 DIN connector
  • New aerodynamic endcaps for wind load optimization

General specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 16
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 4
RF Connector Quantity, total 20

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET High band (8) | Low band (2)
Power Consumption, active state, maximum 8 W
Power Consumption, idle state, maximum 1 W
Protocol 3GPP/AISG 2.0

Dimensions

Width 640 mm | 25.197 in
Depth 235 mm | 9.252 in
Length 2688 mm | 105.827 in
Net Weight, antenna only 78 kg | 171.960 lb

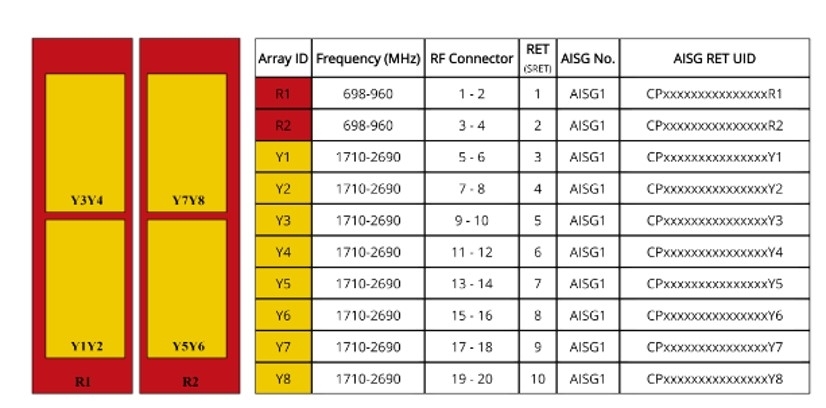

Array layout

Click on image to enlarge.

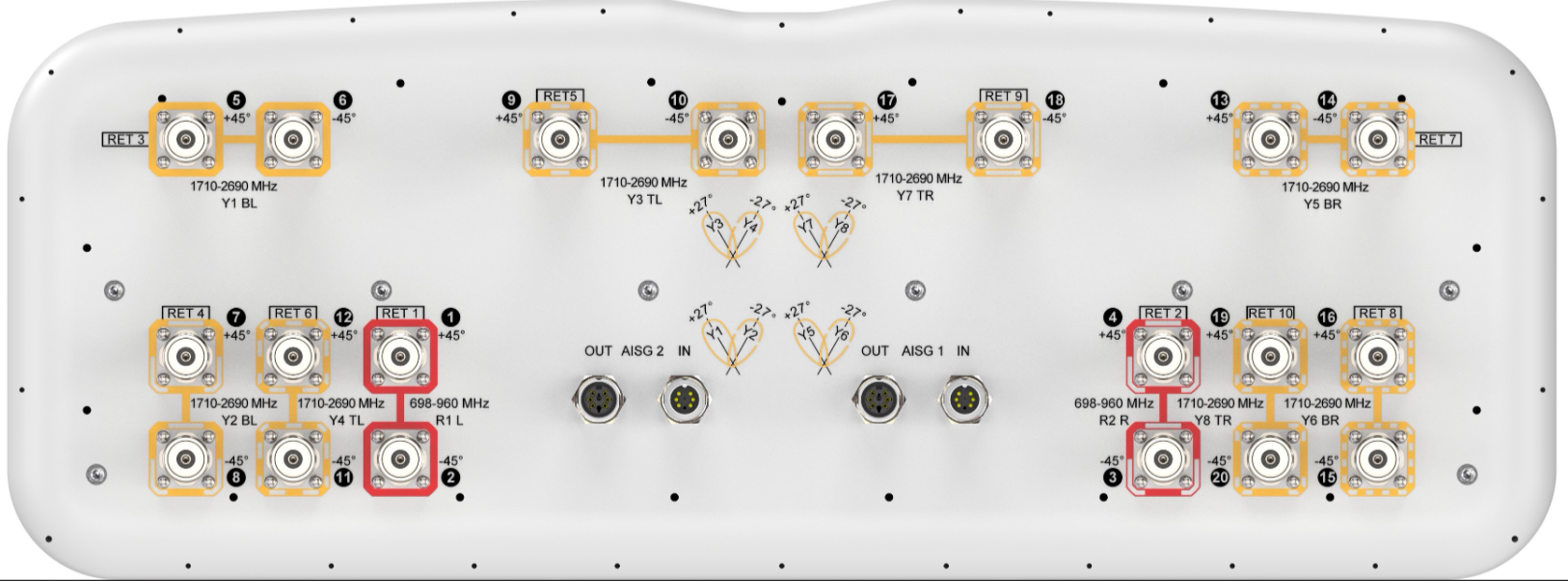

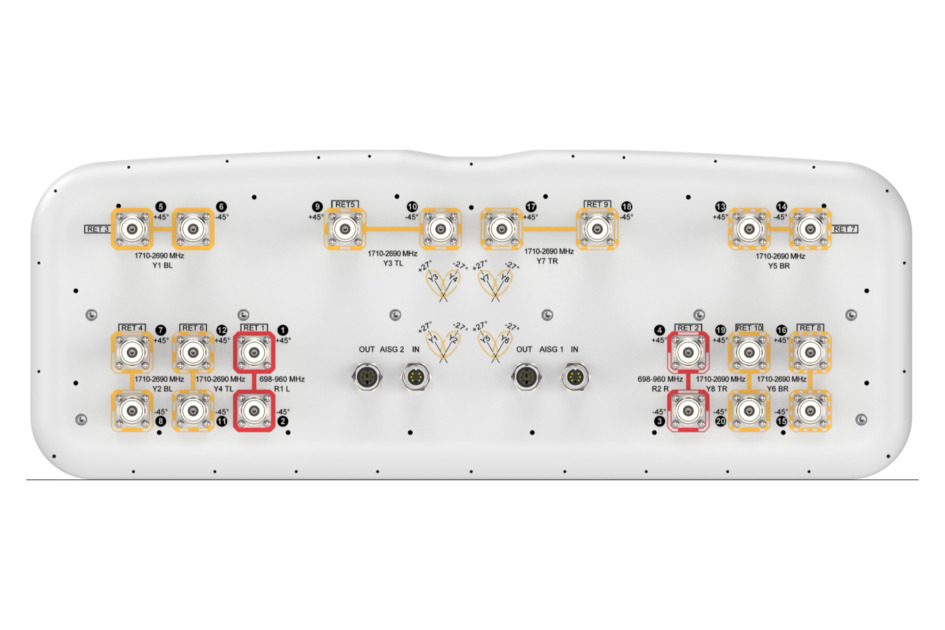

Port configuration

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 698 – 960 MHz | 1710 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 2,250 W @ 50 °C

Electrical specifications

R1,R2 R1,R2 R1,R2 Y1-Y8 Y1-Y8 Y1-Y8 Y1-Y8 Y1-Y8
Frequency Band, MHz 698–790 790–890 890–960 1710–1880 1850–1990 1920–2180 2300–2500 2500–2690
RF Port 1-4 1-4 1-4 5-20 5-20 5-20 5-20 5-20
Gain at Mid Tilt, dBi 16.2 16.4 16.4 17.4 18.3 19.0 20.0 20.1
Beam Centers, Horizontal, degrees ±27 ±27 ±27 ±27 ±27
Beamwidth, Horizontal, degrees 63 62 69 36 34 33 26 25
Beamwidth, Vertical, degrees 9 8.2 7.5 7.2 6.8 6.4 5.6 5.2
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 19 21 19 17 18 17 18 19
Front-to-Back Ratio at 180°, dB 34 33 29 34 35 35 34 32
CPR at Boresight, dB 14 15 15 19 20 21 20 16
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 250 250 250 200 200 200 150 150

Mechanical specifications

Wind Loading @ Velocity, frontal 1,103.0 N @ 150 km/h (248.0 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 329.0 N @ 150 km/h (74.0 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,405.0 N @ 150 km/h (315.9 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 689.0 N @ 150 km/h (154.9 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 760 mm | 29.921 in
Depth, packed 390 mm | 15.354 in
Length, packed 2910 mm | 114.567 in
Weight, gross 103 kg | 227.076 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant
UK-ROHS Compliant

General specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 16
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 4
RF Connector Quantity, total 20

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET High band (8) | Low band (2)
Power Consumption, active state, maximum 8 W
Power Consumption, idle state, maximum 1 W
Protocol 3GPP/AISG 2.0

Dimensions

Width 640 mm | 25.197 in
Depth 235 mm | 9.252 in
Length 2688 mm | 105.827 in
Net Weight, antenna only 78 kg | 171.960 lb

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 698 – 960 MHz | 1710 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 2,250 W @ 50 °C

Electrical specifications

R1,R2 R1,R2 R1,R2 Y1-Y8 Y1-Y8 Y1-Y8 Y1-Y8 Y1-Y8
Frequency Band, MHz 698–790 790–890 890–960 1710–1880 1850–1990 1920–2180 2300–2500 2500–2690
RF Port 1-4 1-4 1-4 5-20 5-20 5-20 5-20 5-20
Gain at Mid Tilt, dBi 16.2 16.4 16.4 17.4 18.3 19.0 20.0 20.1
Beam Centers, Horizontal, degrees ±27 ±27 ±27 ±27 ±27
Beamwidth, Horizontal, degrees 63 62 69 36 34 33 26 25
Beamwidth, Vertical, degrees 9 8.2 7.5 7.2 6.8 6.4 5.6 5.2
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 19 21 19 17 18 17 18 19
Front-to-Back Ratio at 180°, dB 34 33 29 34 35 35 34 32
CPR at Boresight, dB 14 15 15 19 20 21 20 16
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 250 250 250 200 200 200 150 150

Mechanical specifications

Wind Loading @ Velocity, frontal 1,103.0 N @ 150 km/h (248.0 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 329.0 N @ 150 km/h (74.0 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,405.0 N @ 150 km/h (315.9 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 689.0 N @ 150 km/h (154.9 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 760 mm | 29.921 in
Depth, packed 390 mm | 15.354 in
Length, packed 2910 mm | 114.567 in
Weight, gross 103 kg | 227.076 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant
UK-ROHS Compliant
