QD-2402

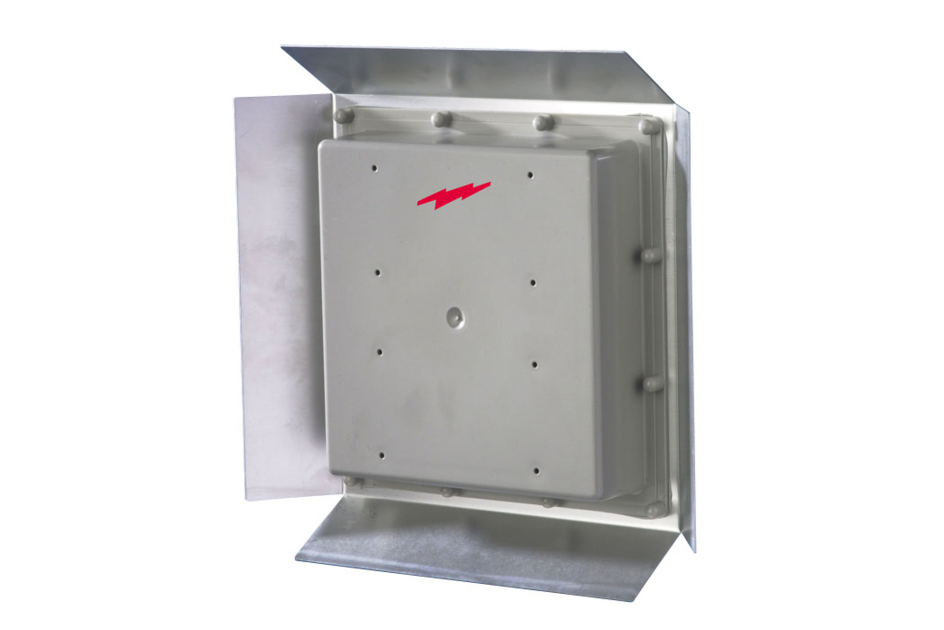

1-port small cell antenna, 2400–2500 MHz, 27° HPBW, fixed electrical tilt
Features and benefits
- Low profile antenna
- Small, light weight design provides an easy to install, cost effective solution
- Single piece radome provides long term mechanical stability
- Mounts to top of tower, pole, or building
Specifications
General specifications
| Antenna Type | Small Cell |
| Band | Single band |
| Color | Off-white |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | ABS, UV resistant |
| Radiator Material | Aluminum |
| RF Connector Interface | N Female |
| RF Connector Location | Rear |
| RF Connector Quantity, high band | 1 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 1 |
Dimensions
| Width | 272 mm | 10.709 in |
| Length | 280 mm | 11.024 in |
| Net Weight, without mounting kit | 0.9 kg | 1.984 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 2400 – 2500 MHz |
| Polarization | Vertical |
Electrical specifications
| Frequency Band, MHz | 2400–2500 |
| Gain, dBi | 16.0 |
| Beamwidth, Horizontal, degrees | 27 |
| Beamwidth, Vertical, degrees | 27 |
| Beam Tilt, degrees | 0 |
| USLS, typical, dB | 17 |
| Front-to-Back Ratio at 180°, dB | 30 |
| VSWR | Return loss, dB | 1.5 | 14.0 |
| Input Power per Port, maximum, watts | 3 |
Regulatory compliance/certifications
| Agency | Classification |
CE
|
Compliant with the relevant CE product directives |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
General specifications
| Antenna Type | Small Cell |
| Band | Single band |
| Color | Off-white |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | ABS, UV resistant |
| Radiator Material | Aluminum |
| RF Connector Interface | N Female |
| RF Connector Location | Rear |
| RF Connector Quantity, high band | 1 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 1 |
Dimensions
| Width | 272 mm | 10.709 in |
| Length | 280 mm | 11.024 in |
| Net Weight, without mounting kit | 0.9 kg | 1.984 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 2400 – 2500 MHz |
| Polarization | Vertical |
Electrical specifications
| Frequency Band, MHz | 2400–2500 |
| Gain, dBi | 16.0 |
| Beamwidth, Horizontal, degrees | 27 |
| Beamwidth, Vertical, degrees | 27 |
| Beam Tilt, degrees | 0 |
| USLS, typical, dB | 17 |
| Front-to-Back Ratio at 180°, dB | 30 |
| VSWR | Return loss, dB | 1.5 | 14.0 |
| Input Power per Port, maximum, watts | 3 |
Regulatory compliance/certifications
| Agency | Classification |
|
CE
|
Compliant with the relevant CE product directives |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
