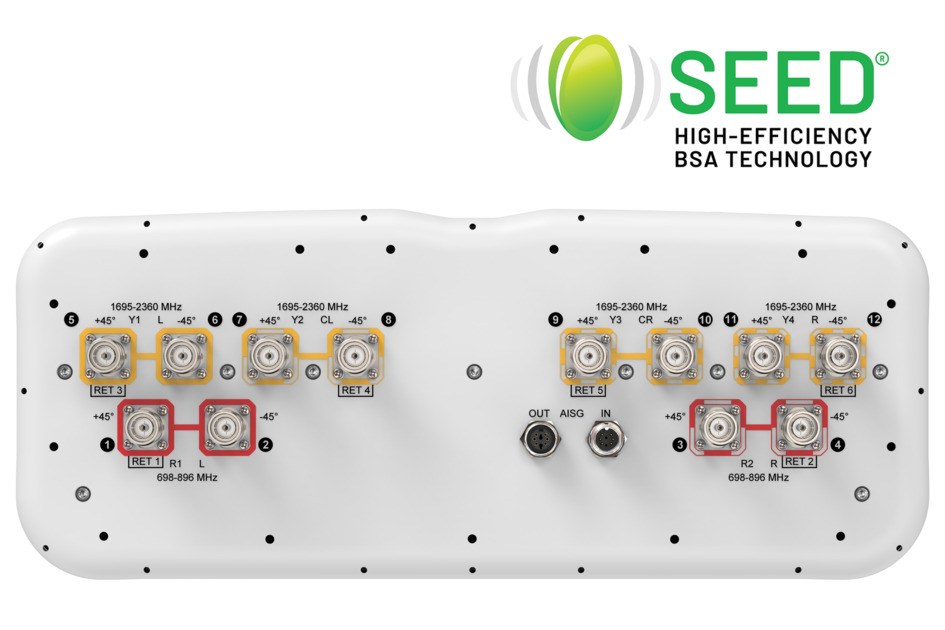

NNH4-65D-R6-V2

12-Port Next Generation PerforMax™ sector antenna, 4x 698-896 and 8x 1695-2360 MHz, 65° HPBW, 6x RET.

Finish making your selections or clear them to view relevant specifications.
Find a partner
Features and benefits
  • Antenna optimized for higher gain with superior radiation efficiency
  • Superior patterns for enhanced interference mitigation resulting in improved SINR, higher throughput, and more capacity
  • Interleaved dipole technology results into an attractive, low wind load mechanical package
  • Best in class PIM immunity
  • Powered by Andrew's SEED® technology (Sustainable Energy Efficient Design)

General specifications

Antenna Type Sector
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Aluminum | Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, mid band 8
RF Connector Quantity, low band 4
RF Connector Quantity, total 12

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET Low band (2) | Mid band (4)
Power Consumption, active state, maximum 8 W
Power Consumption, idle state, maximum 1 W
Protocol 3GPP/AISG 2.0

Dimensions

Width 498 mm | 19.606 in
Depth 197 mm | 7.756 in
Length 2688 mm | 105.827 in
Net Weight, without mounting kit 46 kg | 101.413 lb

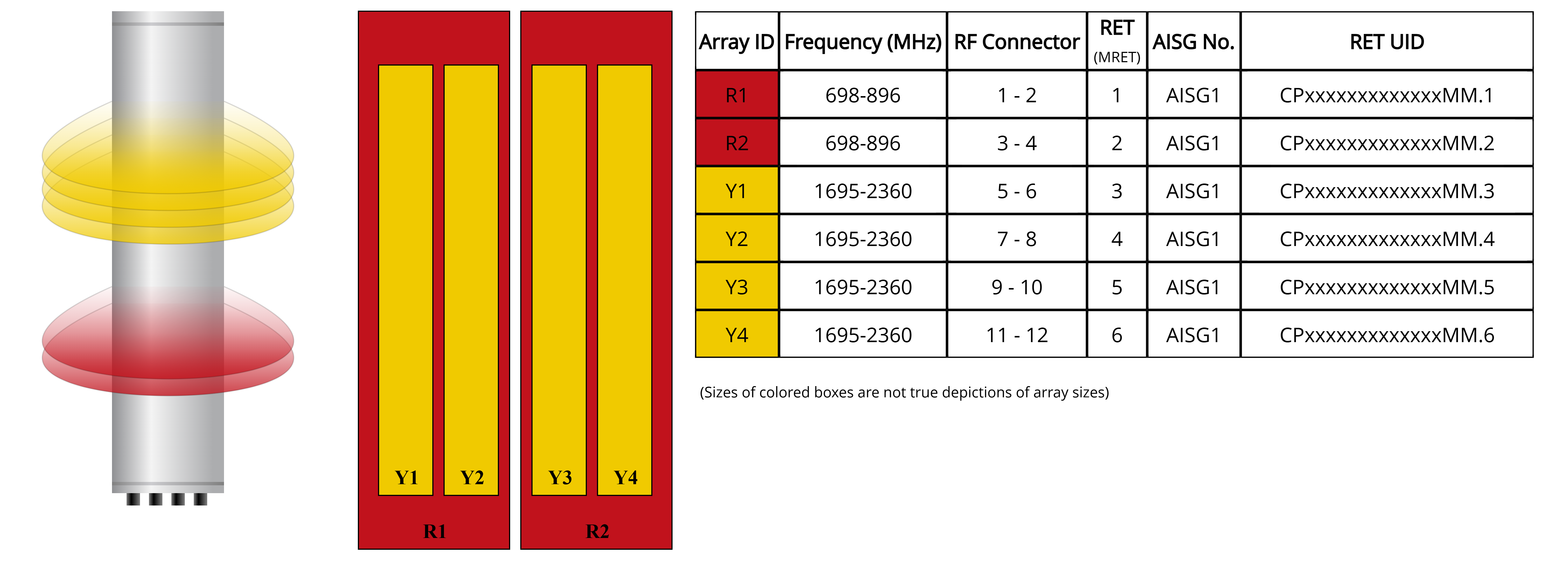

Array layout

Click on image to enlarge.

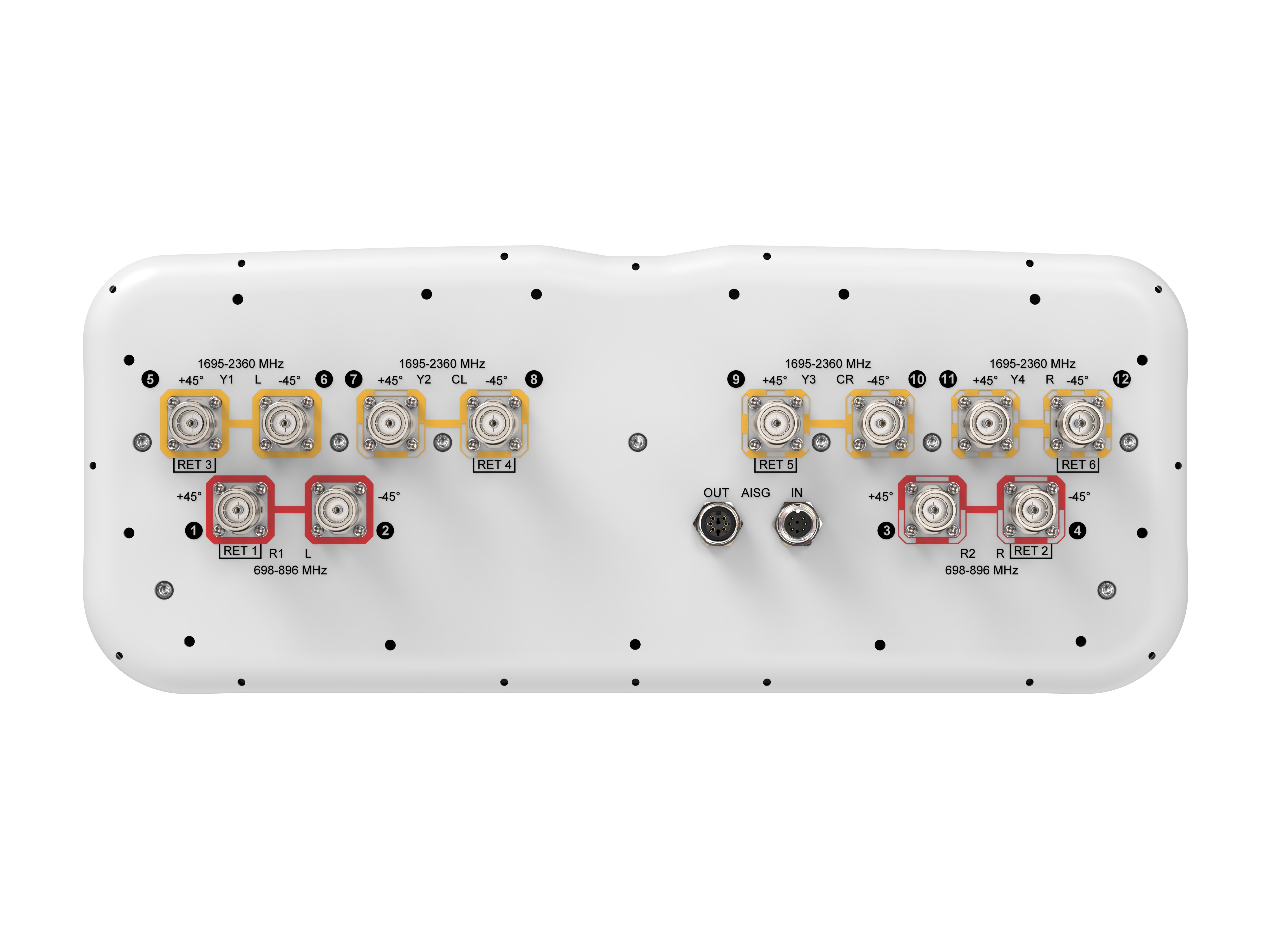

Port configuration

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 698 – 896 MHz | 1695 – 2360 MHz
Polarization ±45°
Total Input Power, maximum 1,440 W @ 50 °C

Electrical specifications

R1,R2 R1,R2 Y1,Y2,Y3,Y4 Y1,Y2,Y3,Y4 Y1,Y2,Y3,Y4 Y1,Y2,Y3,Y4
Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2180 2300–2360
RF Port 1-4 1-4 5-12 5-12 5-12 5-12
Gain, dBi 16.8 17.0 18.0 18.6 19.1 19.4
Beamwidth, Horizontal, degrees 74 72 71 66 62 57
Beamwidth, Vertical, degrees 8.4 7.4 5.7 5.3 5 4.6
Beam Tilt, degrees 0–10 0–10 0–10 0–10 0–10 0–10
USLS (First Lobe), dB 17 15 16 17 18 16
Front-to-Back Ratio at 180°, dB 31 32 32 35 36 35
CPR at Boresight, dB 24 24 21 21 21 20
Isolation, Cross Polarization, dB 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153
Input Power per Port at 50°C, maximum, watts 300 300 250 250 250 200

Mechanical specifications

Wind Loading @ Velocity, frontal 970.0 N @ 150 km/h (218.1 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 304.0 N @ 150 km/h (68.3 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,162.0 N @ 150 km/h (261.2 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 667.0 N @ 150 km/h (149.9 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 565 mm | 22.244 in
Depth, packed 309 mm | 12.165 in
Length, packed 2875 mm | 113.189 in
Weight, gross 62 kg | 136.686 lb

Regulatory compliance/certifications

Agency Classification
UK-ROHS Compliant

General specifications

Antenna Type Sector
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Aluminum | Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, mid band 8
RF Connector Quantity, low band 4
RF Connector Quantity, total 12

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET Low band (2) | Mid band (4)
Power Consumption, active state, maximum 8 W
Power Consumption, idle state, maximum 1 W
Protocol 3GPP/AISG 2.0

Dimensions

Width 498 mm | 19.606 in
Depth 197 mm | 7.756 in
Length 2688 mm | 105.827 in
Net Weight, without mounting kit 46 kg | 101.413 lb

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 698 – 896 MHz | 1695 – 2360 MHz
Polarization ±45°
Total Input Power, maximum 1,440 W @ 50 °C

Electrical specifications

R1,R2 R1,R2 Y1,Y2,Y3,Y4 Y1,Y2,Y3,Y4 Y1,Y2,Y3,Y4 Y1,Y2,Y3,Y4
Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2180 2300–2360
RF Port 1-4 1-4 5-12 5-12 5-12 5-12
Gain, dBi 16.8 17.0 18.0 18.6 19.1 19.4
Beamwidth, Horizontal, degrees 74 72 71 66 62 57
Beamwidth, Vertical, degrees 8.4 7.4 5.7 5.3 5 4.6
Beam Tilt, degrees 0–10 0–10 0–10 0–10 0–10 0–10
USLS (First Lobe), dB 17 15 16 17 18 16
Front-to-Back Ratio at 180°, dB 31 32 32 35 36 35
CPR at Boresight, dB 24 24 21 21 21 20
Isolation, Cross Polarization, dB 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153
Input Power per Port at 50°C, maximum, watts 300 300 250 250 250 200

Mechanical specifications

Wind Loading @ Velocity, frontal 970.0 N @ 150 km/h (218.1 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 304.0 N @ 150 km/h (68.3 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,162.0 N @ 150 km/h (261.2 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 667.0 N @ 150 km/h (149.9 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 565 mm | 22.244 in
Depth, packed 309 mm | 12.165 in
Length, packed 2875 mm | 113.189 in
Weight, gross 62 kg | 136.686 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
UK-ROHS Compliant
