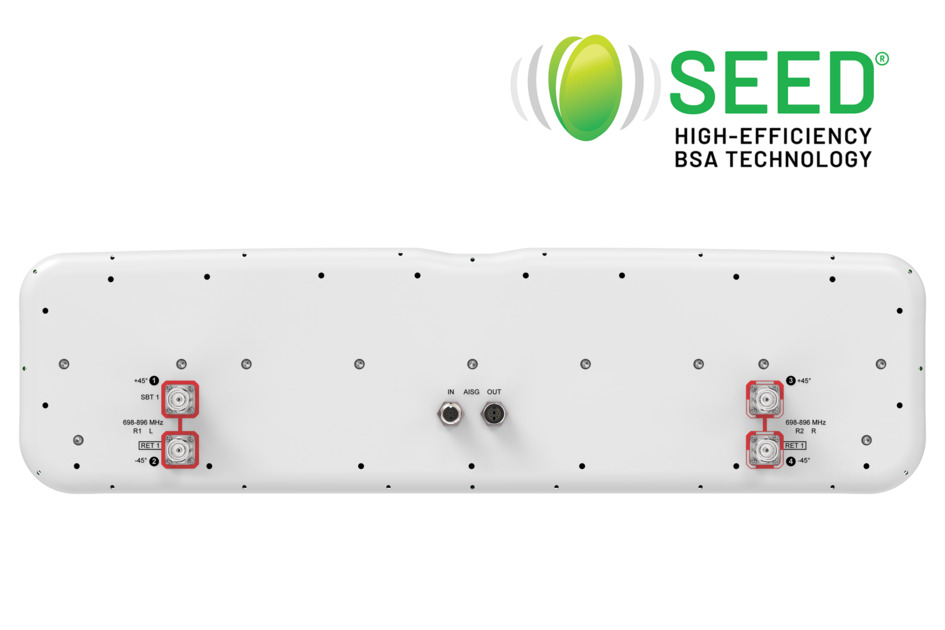

NN-45C-HG-R1B

4-port Next Generation PerforMax™ sector antenna, 4x 698–896 MHz, 45° HPBW, 1x RET

Finish making your selections or clear them to view relevant specifications.

Find a partner

Features and benefits

Designed to reduce SUB 1 alarm triggers with pattern consistency between low band and mid band
Superior patterns for enhanced interference mitigation resulting in improved SINR, higher throughput, and more capacity
Antenna optimized for higher gain with superior radiation efficiency
Best in class PIM immunity
Internal SBT allows remote RET control from the radio over the RF jumper cable
Powered by Andrew's SEED® technology (Sustainable Energy Efficient Design)
Interleaved dipole technology results into an attractive, low wind load mechanical package

Specifications

General specifications

Antenna Type	Sector with internal RET and bias tee
Band	Single band
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	Fiberglass, UV resistant
Radiator Material	Aluminum
Reflector Material	Aluminum

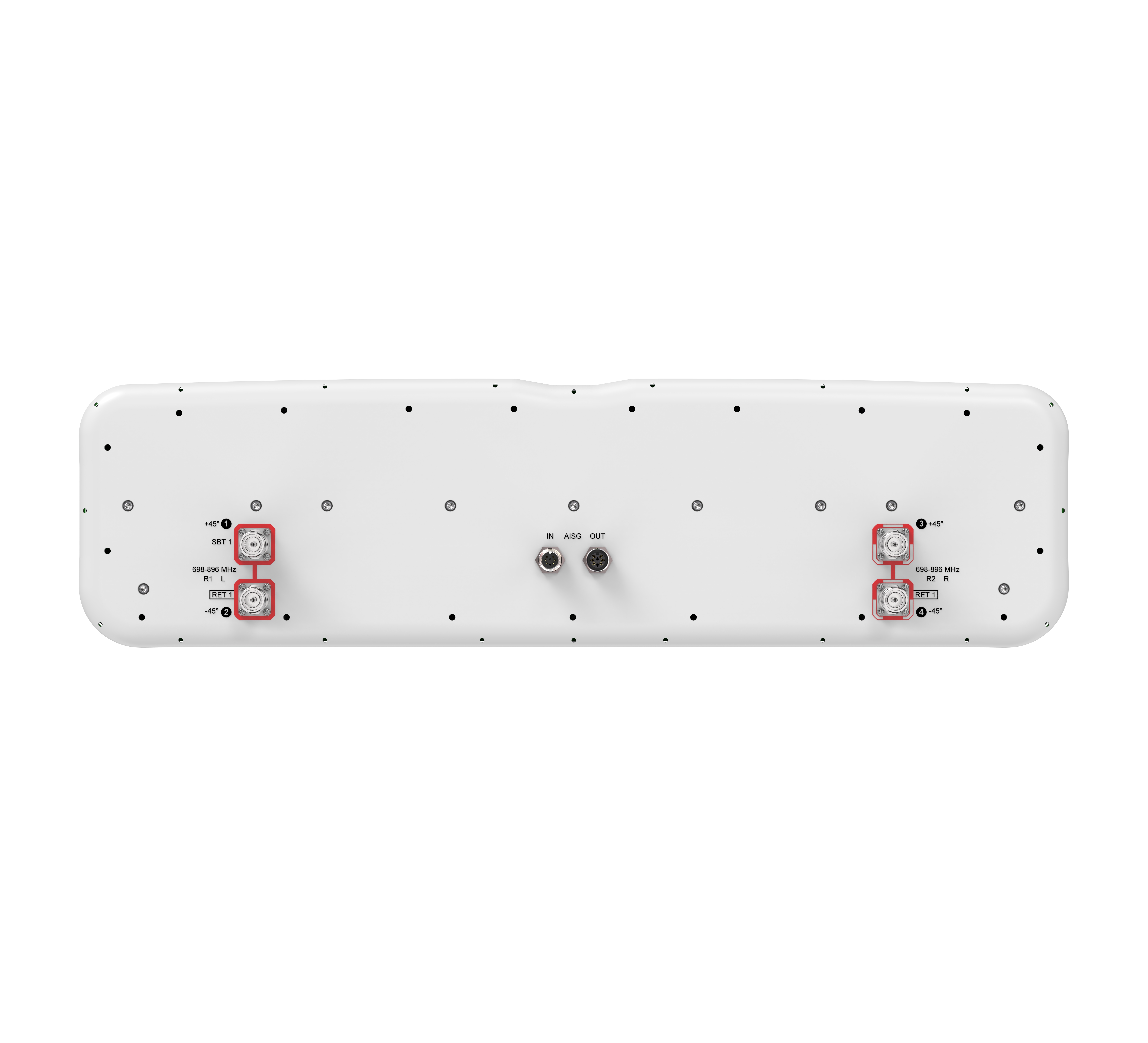

RF Connector Interface	4.3-10 Female
RF Connector Location	Bottom
RF Connector Quantity, low band	4
RF Connector Quantity, total	4

RET Hardware	CommRET v2
RET Interface	8-pin DIN Female \| 8-pin DIN Male
RET Interface, quantity	1 female \| 1 male
Input Voltage	10–30 Vdc
Internal Bias Tee	Port 1
Internal RET	Low band (1)
Power Consumption, active state, maximum	10 W
Power Consumption, idle state, maximum	2 W
Protocol	3GPP/AISG 2.0

Click on image to enlarge.

Click on image to enlarge.

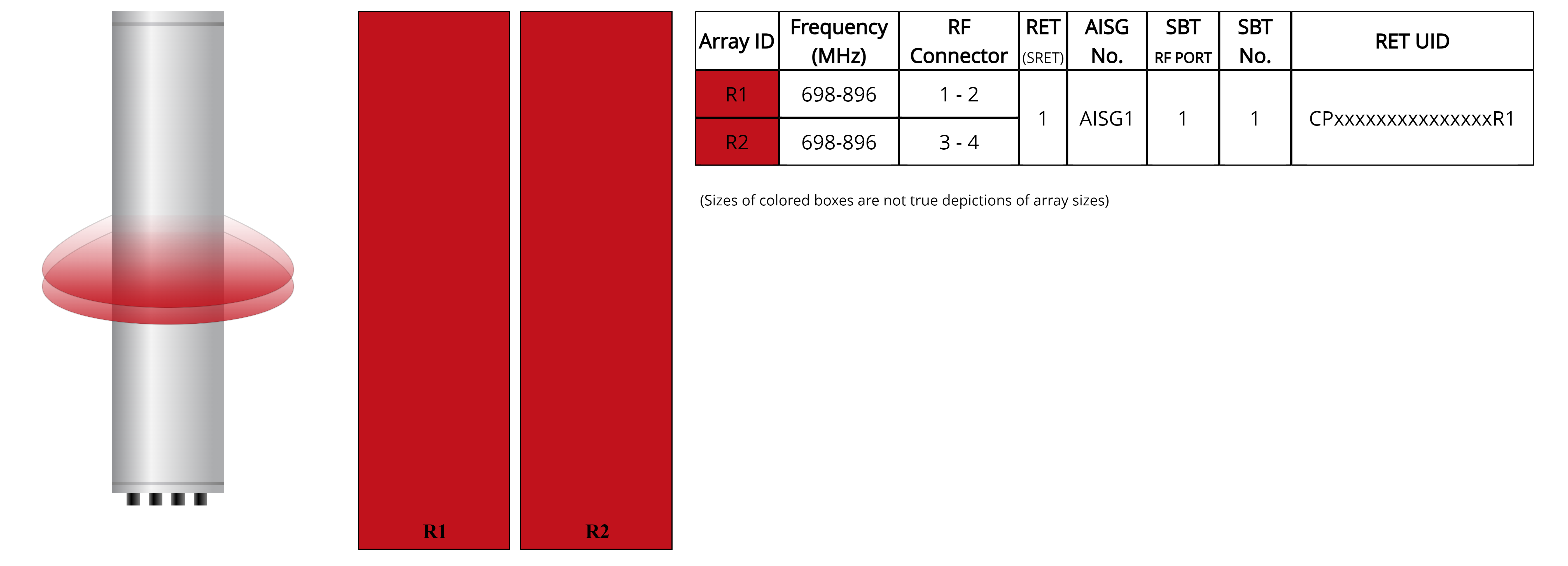

	R1,R2	R1,R2
Frequency Band, MHz	698–806	806–896
RF Port	1-4	1-4
Gain, dBi	17.8	18.2
Beamwidth, Horizontal, degrees	47	45
Beamwidth, Vertical, degrees	9.1	8
Beam Tilt, degrees	0–10	0–10
USLS (First Lobe), dB	16	15
Front-to-Back Ratio at 180°, dB	32	34
CPR at Boresight, dB	14	17
Isolation, Cross Polarization, dB	25	25
Isolation, Inter-band, dB	25	25
VSWR \| Return loss, dB	1.5 \| 14.0	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-153	-153
Input Power per Port at 50°C, maximum, watts	300	300

Wind Loading @ Velocity, frontal	2,340.0 N @ 150 km/h (526.1 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	225.0 N @ 150 km/h (50.6 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum	2,340.0 N @ 150 km/h (526.1 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	2,340.0 N @ 150 km/h (526.1 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)

Agency	Classification
UK-ROHS	Compliant
