This product was discontinued on: March 30, 2024

For other alternatives, please contact us for more information.

0 Replacement products available

JCVV-65A-R4

8-port sector antenna, 2x 698–803, 2x 824-960 and 4x 1695-2690 MHz, 65° HPBW, 4x IntRET.

Finish making your selections or clear them to view relevant specifications.
Features and benefits
  • Uses the 4.3-10 connector which is 40 percent smaller than the 7-16 DIN connector

General specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 4
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 4
RF Connector Quantity, total 8

Remote electrical tilt (ret) information

RET Interface 8-pin DIN Male
RET Interface, quantity 4 male
Input Voltage 10–30 Vdc
Internal RET High band (2) | Low band (2)
Power Consumption, idle state, maximum 1 W
Power Consumption, normal conditions, maximum 10 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 350 mm | 13.78 in
Depth 208 mm | 8.189 in
Length 1400 mm | 55.118 in
Net Weight, without mounting kit 24.3 kg | 53.572 lb

Array layout

Click on image to enlarge.

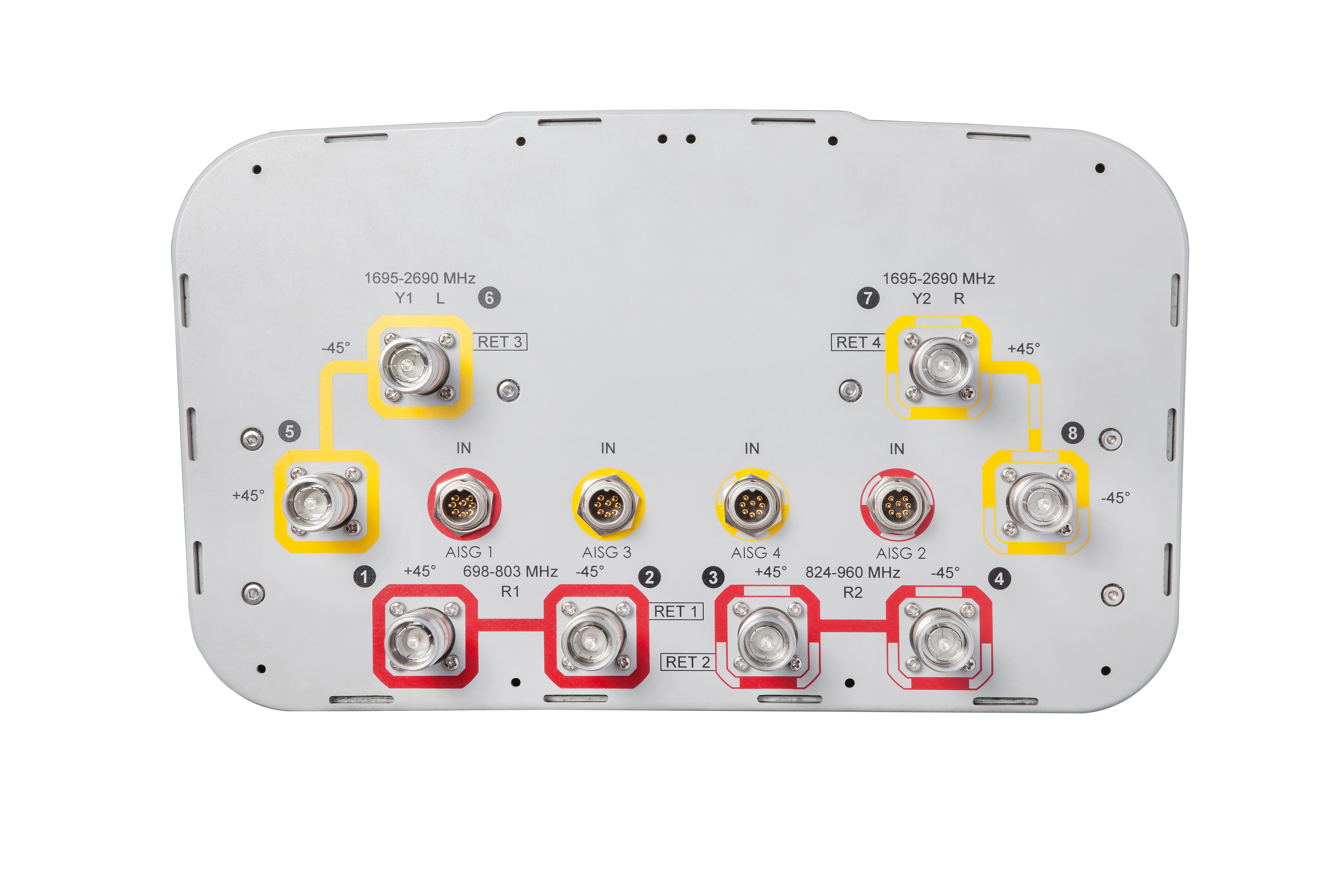

Port configuration

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 698 – 803 MHz | 824 – 960 MHz | 1695 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 800 W @ 50 °C

Electrical specifications

Frequency Band, MHz 698–803 824–896 880–960 1695–1880 1850–1990 1920–2180 2300–2690
Gain, dBi 13.6 14.0 14.2 17.3 17.6 17.9 18.3
Beamwidth, Horizontal, degrees 68 65 63 61 60 61 59
Beamwidth, Vertical, degrees 17.1 14.9 13.7 7.3 7 6.6 5.6
Beam Tilt, degrees 2–18 2–18 2–18 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 19 21 18 15 16 16 17
Front-to-Back Ratio at 180°, dB 30 31 30 33 39 39 35
CPR at Boresight, dB 15 15 17 18 21 21 16
Isolation, Cross Polarization, dB 28 28 28 28 28 28 28
Isolation, Inter-band, dB 30 30 30 30 30 30 30
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 300 300 300 250 250 250 200

Mechanical specifications

Wind Loading @ Velocity, frontal 221.0 N @ 150 km/h (49.7 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 185.0 N @ 150 km/h (41.6 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 469.0 N @ 150 km/h (105.4 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 234.0 N @ 150 km/h (52.6 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 477 mm | 18.78 in
Depth, packed 354 mm | 13.937 in
Length, packed 1544 mm | 60.787 in
Weight, gross 36.7 kg | 80.91 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted
