B-65B-R1VB
2-port sector antenna, 2x 380-470MHz, 65° HPBW, 1xRET
Features and benefits
- Antenna solution for TETRA and LTE 450 band
- With Remote Electrical Tilt (RET) functionality
Specifications
General specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 2 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (1) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 500 mm | 19.685 in |
| Depth | 180 mm | 7.087 in |
| Length | 2002 mm | 78.819 in |
| Net Weight, antenna only | 23.7 kg | 52.249 lb |

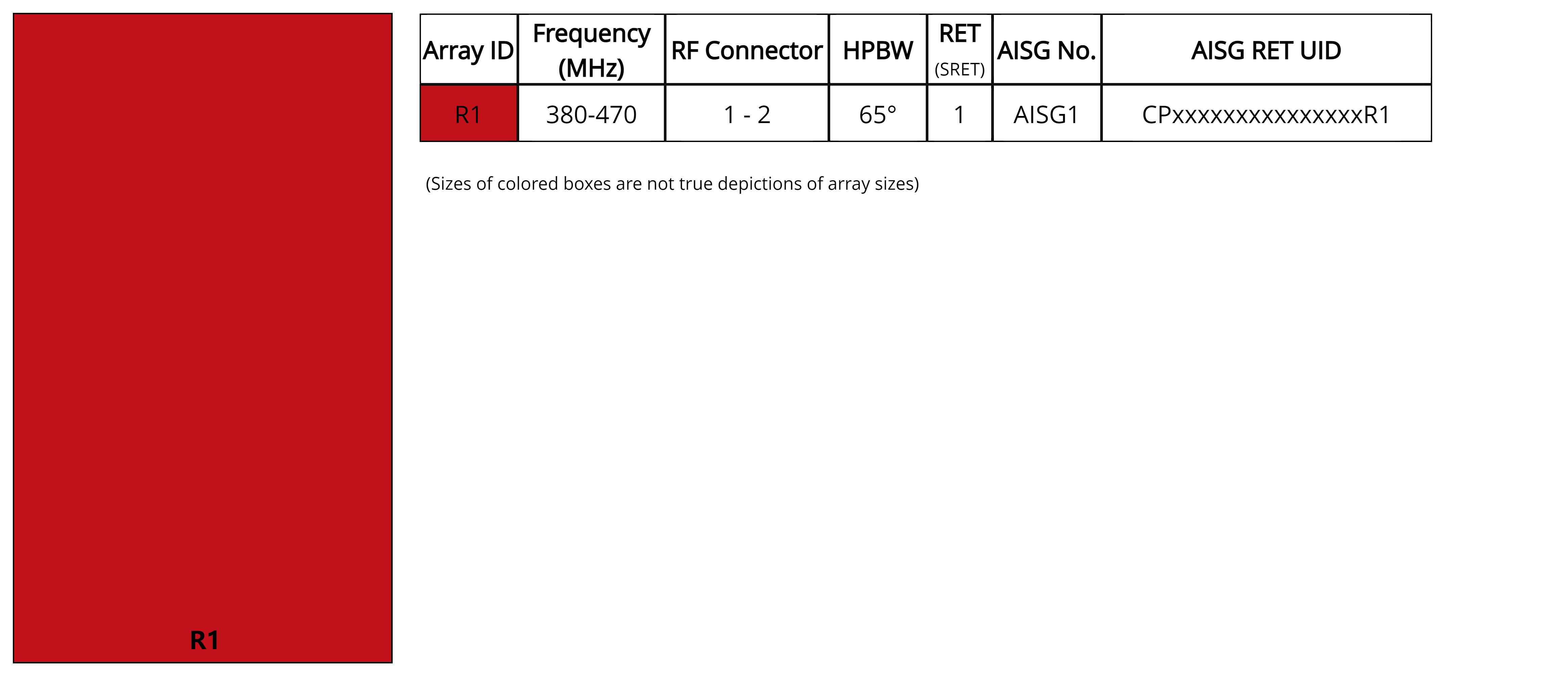

Array layout
| Click on image to enlarge. |

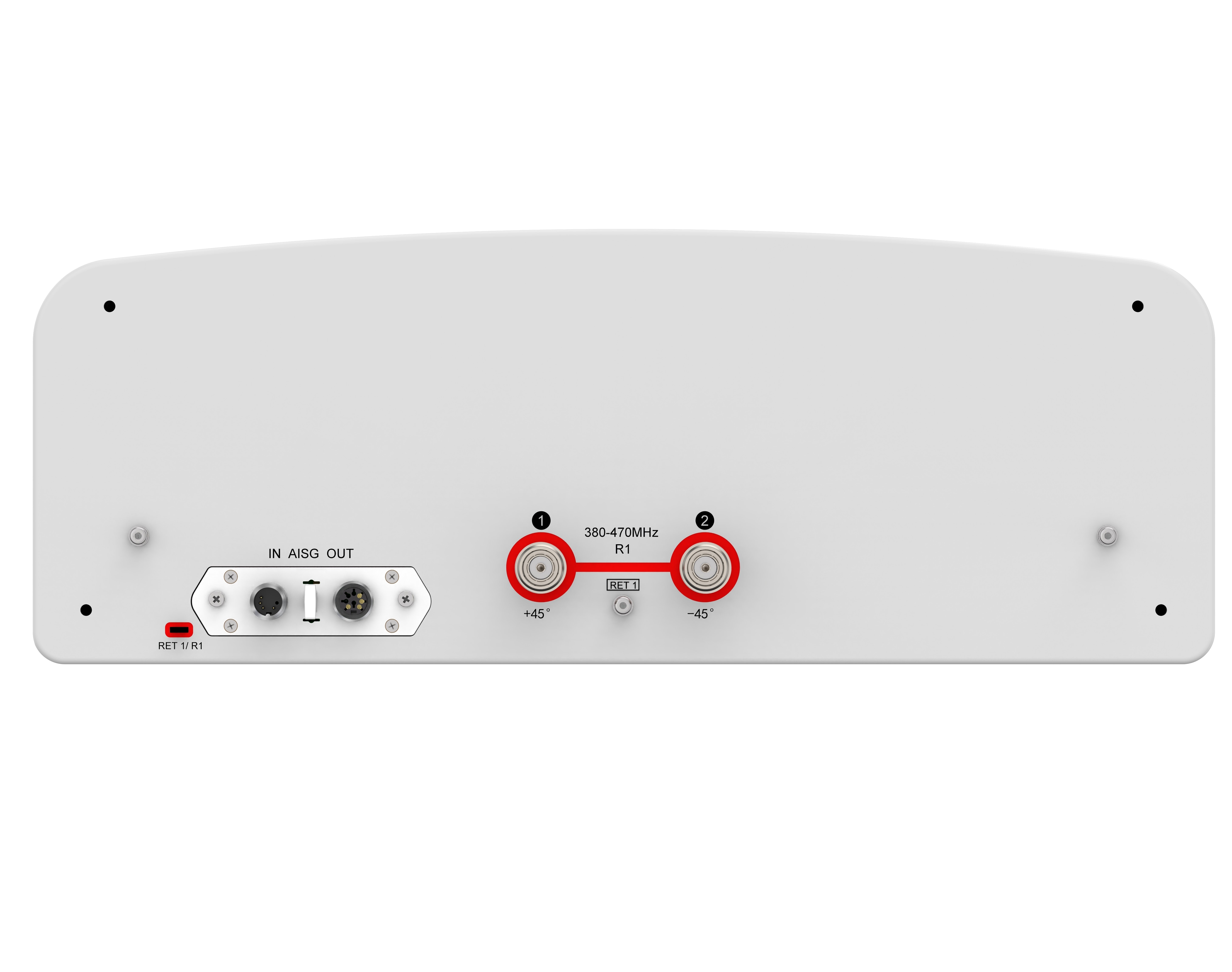

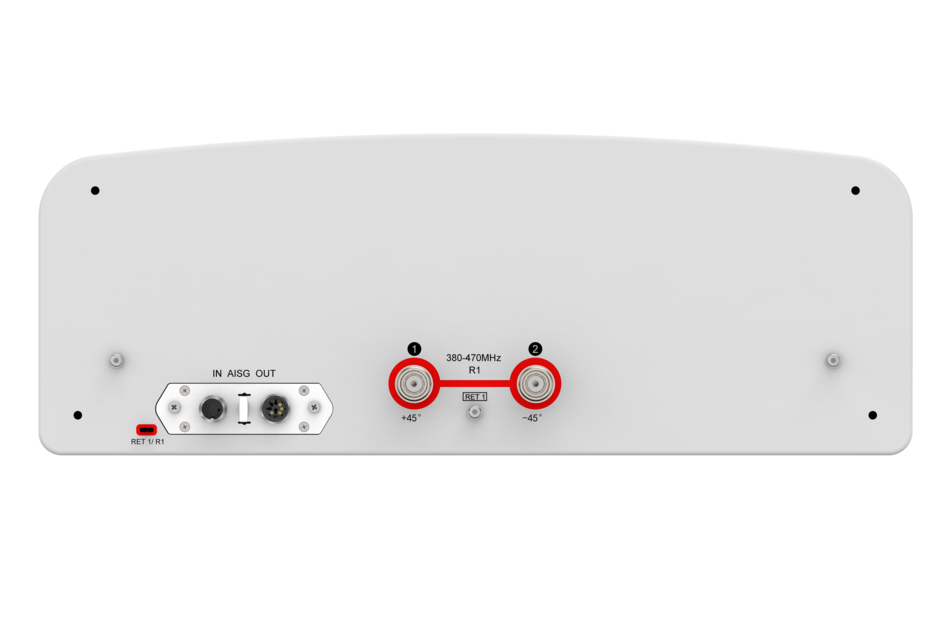

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 380 – 470 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 200 W |
Electrical specifications
| R1 | R1 | |
| Frequency Band, MHz | 380–430 | 430–470 |
| RF Port | 1,2 | 1,2 |
| Gain, dBi | 13.4 | 13.9 |
| Beamwidth, Horizontal, degrees | 68 | 65 |
| Beamwidth, Vertical, degrees | 20.1 | 17.9 |
| Beam Tilt, degrees | 0–16 | 0–16 |
| USLS (First Lobe), dB | 17 | 16 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 25 | 28 |
| CPR at Boresight, dB | 23 | 26 |
| Isolation, Cross Polarization, dB | 28 | 28 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 |
| Input Power per Port, maximum, watts | 100 | 100 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 906.0 N @ 150 km/h (203.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 352.0 N @ 150 km/h (79.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 1,191.0 N @ 150 km/h (267.7 lbf @ 150 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and weights
| Width, packed | 595 mm | 23.425 in |
| Depth, packed | 300 mm | 11.811 in |
| Length, packed | 2260 mm | 88.976 in |
| Weight, gross | 36 kg | 79.366 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
General specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 2 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (1) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 500 mm | 19.685 in |
| Depth | 180 mm | 7.087 in |
| Length | 2002 mm | 78.819 in |
| Net Weight, antenna only | 23.7 kg | 52.249 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 380 – 470 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 200 W |
Electrical specifications
| R1 | R1 | |
| Frequency Band, MHz | 380–430 | 430–470 |
| RF Port | 1,2 | 1,2 |
| Gain, dBi | 13.4 | 13.9 |
| Beamwidth, Horizontal, degrees | 68 | 65 |
| Beamwidth, Vertical, degrees | 20.1 | 17.9 |
| Beam Tilt, degrees | 0–16 | 0–16 |
| USLS (First Lobe), dB | 17 | 16 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 25 | 28 |
| CPR at Boresight, dB | 23 | 26 |
| Isolation, Cross Polarization, dB | 28 | 28 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 |
| Input Power per Port, maximum, watts | 100 | 100 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 906.0 N @ 150 km/h (203.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 352.0 N @ 150 km/h (79.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 1,191.0 N @ 150 km/h (267.7 lbf @ 150 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and weights
| Width, packed | 595 mm | 23.425 in |
| Depth, packed | 300 mm | 11.811 in |
| Length, packed | 2260 mm | 88.976 in |
| Weight, gross | 36 kg | 79.366 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
