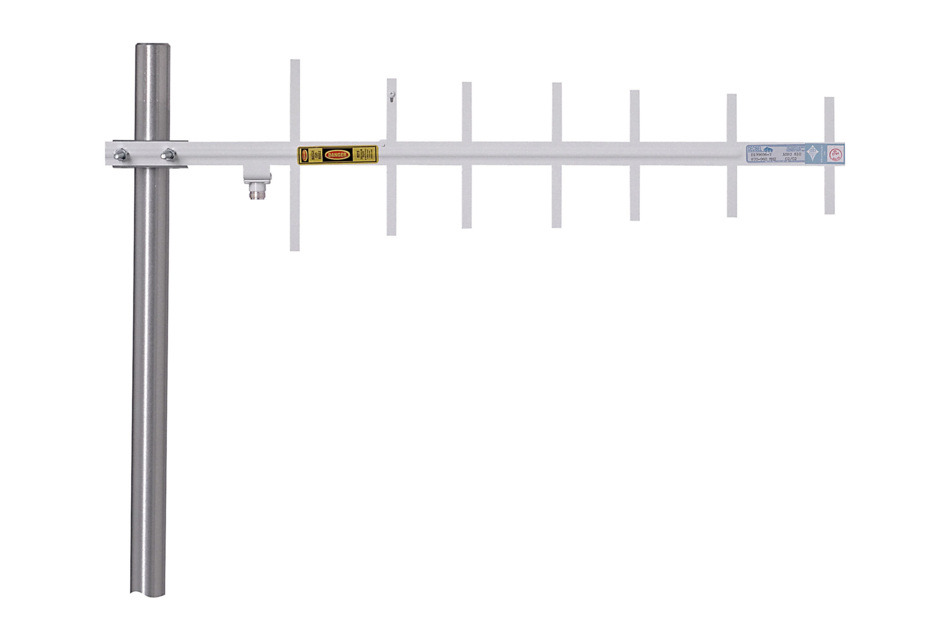

ASPJ810
1-port sector antenna, 870–960 MHz, 60° HPBW, fixed electrical tilt
Features and benefits
- Enclosed driven element protects against icing, water penetration, and corrosion
- Unique mounts allow vertical or horizontal polarization
Specifications
General specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Off-white |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radiator Material | Aluminum |
| RF Connector Interface | N Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 1 |
| RF Connector Quantity, total | 1 |
Dimensions
| Width | 180.3 mm | 7.098 in |
| Depth | 5.8 mm | 0.228 in |
| Length | 685.8 mm | 27 in |
| Net Weight, without mounting kit | 0.9 kg | 1.984 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 870 – 960 MHz |
| Polarization | Vertical |
Electrical specifications
| Frequency Band, MHz | 870–960 |
| Gain, dBi | 12.1 |
| Beamwidth, Horizontal, degrees | 60 |
| Beamwidth, Vertical, degrees | 30 |
| Beam Tilt, degrees | 0 |
| Front-to-Back Ratio at 180°, dB | 20 |
| VSWR | Return loss, dB | 1.5 | 14.0 |
| Input Power per Port, maximum, watts | 150 |
Mechanical specifications
| Wind Loading @ Velocity, maximum | 71.2 N @ 100 mph (16.0 lbf @ 100 mph) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Included | U-bolts |
Regulatory compliance/certifications
| Agency | Classification |
CE
|
Compliant with the relevant CE product directives |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
General specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Off-white |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radiator Material | Aluminum |
| RF Connector Interface | N Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 1 |
| RF Connector Quantity, total | 1 |
Dimensions
| Width | 180.3 mm | 7.098 in |
| Depth | 5.8 mm | 0.228 in |
| Length | 685.8 mm | 27 in |
| Net Weight, without mounting kit | 0.9 kg | 1.984 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 870 – 960 MHz |
| Polarization | Vertical |
Electrical specifications
| Frequency Band, MHz | 870–960 |
| Gain, dBi | 12.1 |
| Beamwidth, Horizontal, degrees | 60 |
| Beamwidth, Vertical, degrees | 30 |
| Beam Tilt, degrees | 0 |
| Front-to-Back Ratio at 180°, dB | 20 |
| VSWR | Return loss, dB | 1.5 | 14.0 |
| Input Power per Port, maximum, watts | 150 |
Mechanical specifications
| Wind Loading @ Velocity, maximum | 71.2 N @ 100 mph (16.0 lbf @ 100 mph) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Included | U-bolts |
Regulatory compliance/certifications
| Agency | Classification |
|
CE
|
Compliant with the relevant CE product directives |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
