ASP705K

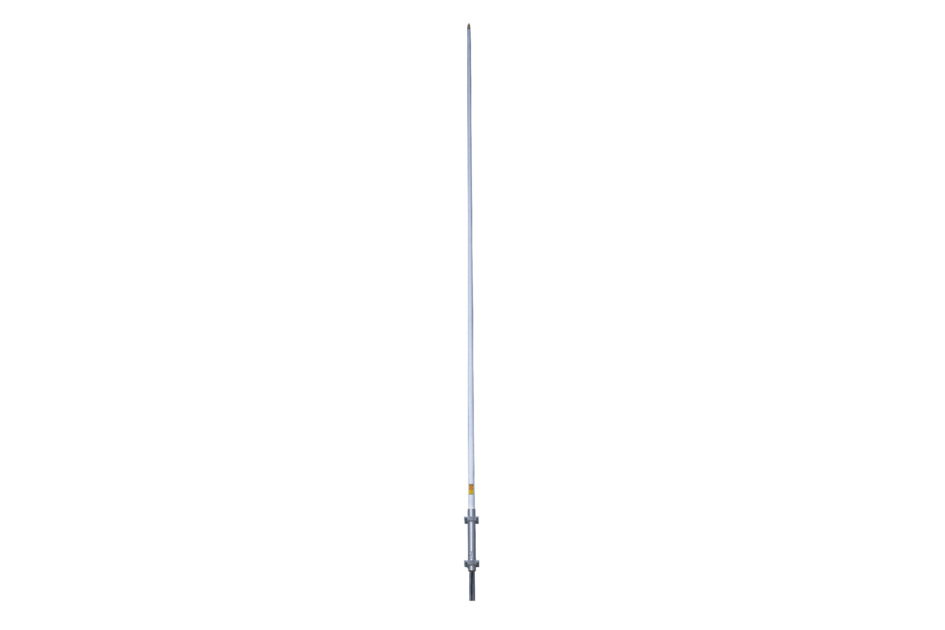

1-port omni antenna, 450–470 MHz, 360° HPBW, fixed electrical tilt
Features and benefits
- Invert mountable
Specifications
General specifications
| Antenna Type | Omni |
| Band | Single band |
| Color | Off-white |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Brass |
| RF Connector Interface | N Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 1 |
| RF Connector Quantity, total | 1 |
Dimensions
| Length | 5588 mm | 220 in |
| Net Weight, without mounting kit | 10 kg | 22.046 lb |
| Outer Diameter | 76.2 mm | 3 in |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 450 – 470 MHz |
| Polarization | Vertical |
Electrical specifications
| Frequency Band, MHz | 450–470 |
| Gain, dBi | 12.1 |
| Beamwidth, Horizontal, degrees | 360 |
| Beamwidth, Vertical, degrees | 7 |
| Beam Tilt, degrees | 0 |
| VSWR | Return loss, dB | 1.5 | 14.0 |
| Input Power per Port, maximum, watts | 500 |
Mechanical specifications
| Wind Loading @ Velocity, maximum | 364.8 N @ 100 mph (82.0 lbf @ 100 mph) |
| Wind Speed, maximum | 201 km/h (125 mph) |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
General specifications
| Antenna Type | Omni |
| Band | Single band |
| Color | Off-white |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Brass |
| RF Connector Interface | N Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 1 |
| RF Connector Quantity, total | 1 |
Dimensions
| Length | 5588 mm | 220 in |
| Net Weight, without mounting kit | 10 kg | 22.046 lb |
| Outer Diameter | 76.2 mm | 3 in |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 450 – 470 MHz |
| Polarization | Vertical |
Electrical specifications
| Frequency Band, MHz | 450–470 |
| Gain, dBi | 12.1 |
| Beamwidth, Horizontal, degrees | 360 |
| Beamwidth, Vertical, degrees | 7 |
| Beam Tilt, degrees | 0 |
| VSWR | Return loss, dB | 1.5 | 14.0 |
| Input Power per Port, maximum, watts | 500 |
Mechanical specifications
| Wind Loading @ Velocity, maximum | 364.8 N @ 100 mph (82.0 lbf @ 100 mph) |
| Wind Speed, maximum | 201 km/h (125 mph) |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
