2UNPX206.12R2

8-port multibeam antenna, 4x 698–894 and 4x 1710-2180 MHz, 4x 35° HPBW, 4x RET

Finish making your selections or clear them to view relevant specifications.

Features and benefits

Antenna has individual AISG connectors per band: One in/out pair for low band in cascaded single-RET configuration to independently control the two low band beams; one in/out pair for high band in cascaded single-RET configuration to independently control the two high band beams

Specifications

General specifications

Antenna Type	Multibeam
Band	Multiband
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	ASA, UV stabilized
Radiator Material	Aluminum \| Low loss circuit board
Reflector Material	Aluminum
RF Connector Interface	7-16 DIN Female

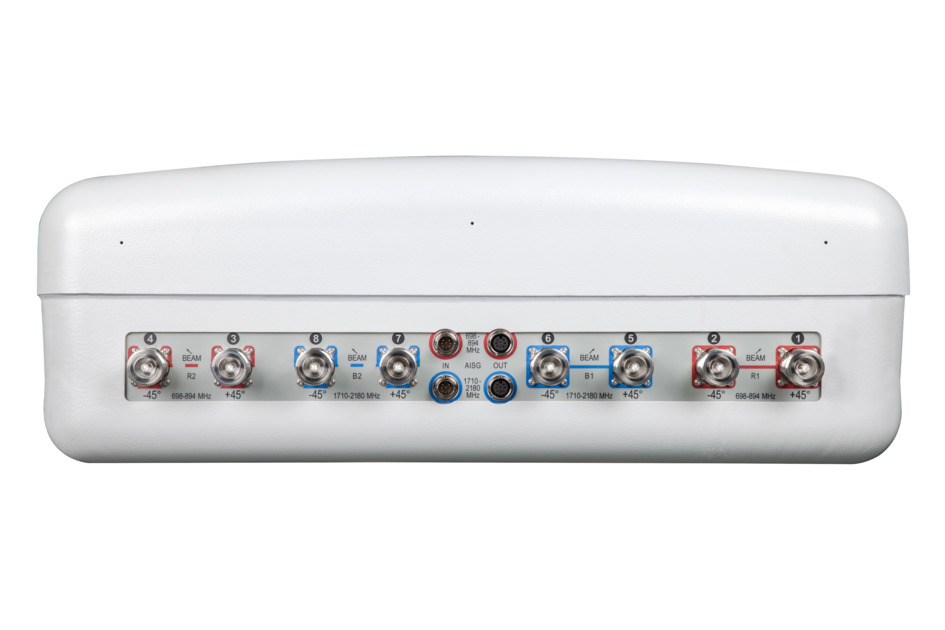

RF Connector Location	Bottom
RF Connector Quantity, high band	4
RF Connector Quantity, mid band	0
RF Connector Quantity, low band	4
RF Connector Quantity, total	8

RET Interface	8-pin DIN Female \| 8-pin DIN Male
RET Interface, quantity	2 female \| 2 male
Input Voltage	10–30 Vdc
Internal RET	High band (2) \| Low band (2)
Power Consumption, idle state, maximum	2 W
Power Consumption, normal conditions, maximum	13 W
Protocol	3GPP/AISG 2.0 (Single RET)

Width	684 mm \| 26.929 in
Depth	245 mm \| 9.646 in
Length	1728 mm \| 68.032 in
Net Weight, without mounting kit	44 kg \| 97.003 lb

Frequency Band, MHz	698–806	806–894	1710–1880	1850–1990	1920–2180
Gain, dBi	14.9	15.5	17.6	18.6	18.6
Beam Centers, Horizontal, degrees	±29	±25	±32	±30	±28
Beamwidth, Horizontal, degrees	40	35	34	31	31
Beamwidth, Vertical, degrees	15.6	13.5	6.9	6.5	6.2
Beam Tilt, degrees	0–10	0–10	0–10	0–10	0–10
USLS (First Lobe), dB	17	14	18	18	18
Front-to-Back Ratio at 180°, dB	24	24	35	40	39
CPR at Boresight, dB	19	18	22	22	18
Isolation, Same Beam, dB	25	25	25	25	25
Isolation, Beam to Beam, dB	18	18	18	18	18
VSWR \| Return loss, dB	1.43 \| 15.0	1.43 \| 15.0	1.43 \| 15.0	1.43 \| 15.0	1.43 \| 15.0
PIM, 3rd Order, 2 x 20 W, dBc	-150	-150	-150	-150	-150
Input Power per Port, maximum, watts	300	300	250	250	250

Wind Loading @ Velocity, frontal	1,473.0 N @ 150 km/h (331.1 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	256.0 N @ 150 km/h (57.6 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	1,512.0 N @ 150 km/h (339.9 lbf @ 150 km/h)
Wind Speed, maximum	200 km/h (124 mph)

Agency	Classification
CE	Compliant with the relevant CE product directives
CHINA-ROHS	Below maximum concentration value
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
UK-ROHS	Compliant
REACH-SVHC	Compliant as per SVHC revision on www.andrew.com/ProductCompliance
