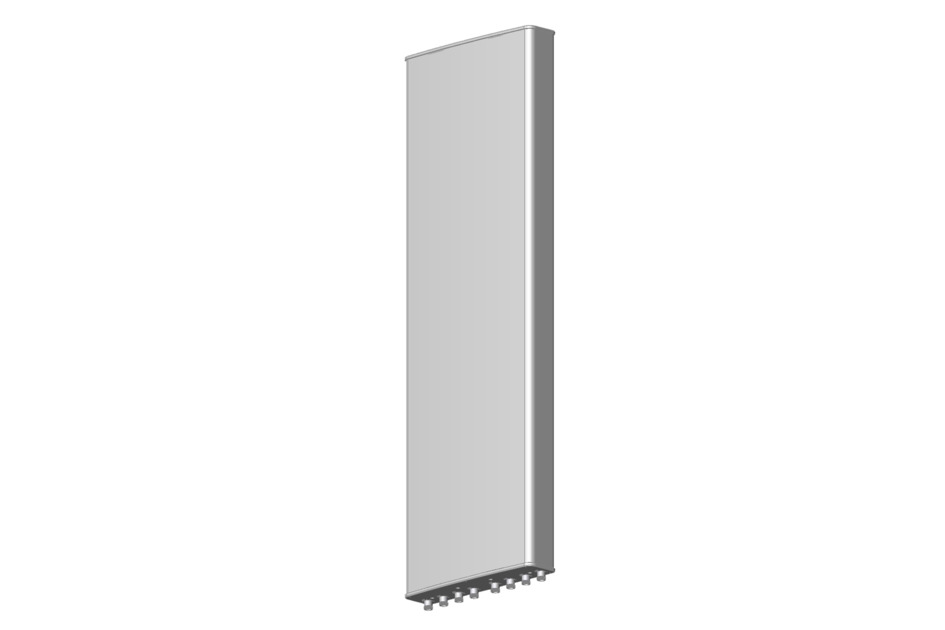

2UNPX203.6R2

8-port multibeam antenna, 4x 698–894 and 4x 1710-2170 MHz, 4x 37° HPBW, 4x RET

Finish making your selections or clear them to view relevant specifications.

Features and benefits

Single panel design supporting two separate beams perfectly optimized at horizontal pointing angles of +27 degrees and –27 degrees from boresight

Specifications

General specifications

Antenna Type	Multibeam
Band	Multiband
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	Polyester fiberglass pultrusion
Radiator Material	Aluminum \| Low loss circuit board
Reflector Material	Aluminum
RF Connector Interface	7-16 DIN Female
RF Connector Location	Bottom
RF Connector Quantity, high band	4
RF Connector Quantity, mid band	0
RF Connector Quantity, low band	4
RF Connector Quantity, total	8

RET Interface	8-pin DIN Male
RET Interface, quantity	2 male
Input Voltage	10–30 Vdc
Internal RET	High band (2) \| Low band (2)
Power Consumption, idle state, maximum	2 W
Power Consumption, normal conditions, maximum	13 W
Protocol	3GPP/AISG 2.0 (Single RET)

Width	565 mm \| 22.244 in
Depth	127 mm \| 5 in
Length	1746 mm \| 68.74 in
Net Weight, without mounting kit	37 kg \| 81.571 lb

Frequency Band, MHz	698–790	790–894	1710–1920	1920–2170
Gain, dBi	13.8	14.5	16.2	17.5
Beam Centers, Horizontal, degrees	±28	±28	±30	±30
Beamwidth, Horizontal, degrees	43	37	35	32
Beamwidth, Vertical, degrees	25.1	21.7	12.1	11
Beam Tilt, degrees	1–16	1–16	0–10	0–10
USLS (First Lobe), dB	15	15	15	15
Front-to-Back Ratio at 180°, dB	20	20	30	30
Isolation, Cross Polarization, dB	22	22	20	20
VSWR \| Return loss, dB	1.43 \| 15.0	1.43 \| 15.0	1.43 \| 15.0	1.43 \| 15.0
PIM, 3rd Order, 2 x 20 W, dBc	-150	-150	-150	-150
Input Power per Port, maximum, watts	500	500	300	300

Wind Loading @ Velocity, frontal	1,258.0 N @ 150 km/h (282.8 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	194.0 N @ 150 km/h (43.6 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	1,283.0 N @ 150 km/h (288.4 lbf @ 150 km/h)
Wind Speed, maximum	250 km/h (155 mph)

Agency	Classification
CE	Compliant with the relevant CE product directives
CHINA-ROHS	Below maximum concentration value
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
UK-ROHS	Compliant
REACH-SVHC	Compliant as per SVHC revision on www.andrew.com/ProductCompliance
