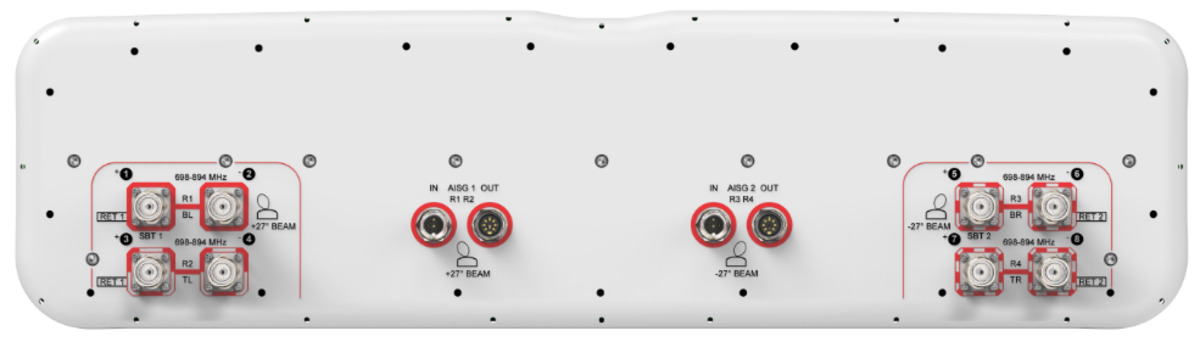

2NN-33C-HG-R2B
8-port Next Generation PerforMax™ Superior Coverage and Capacity multibeam antenna, 8x 698–894 MHz, 33° HPBW, 8ft, 2x RET
Features and benefits
- Ideal 4T4R low band antenna for use with an FD mMIMO antenna
- Antenna optimized for higher gain with superior radiation efficiency

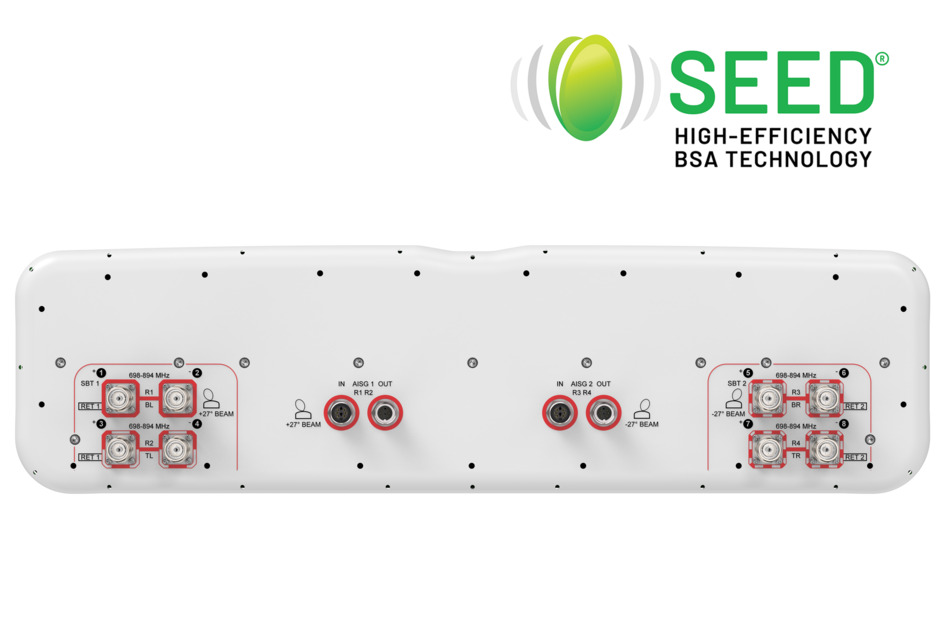

- Powered by Andrew's SEED® technology (Sustainable Energy Efficient Design)
- Superior patterns for enhanced interference mitigation resulting in improved SINR, higher throughput, and more capacity
- Best in class PIM immunity
- Internal SBT allows remote RET control from the radio over the RF jumper cable
Specifications
General specifications

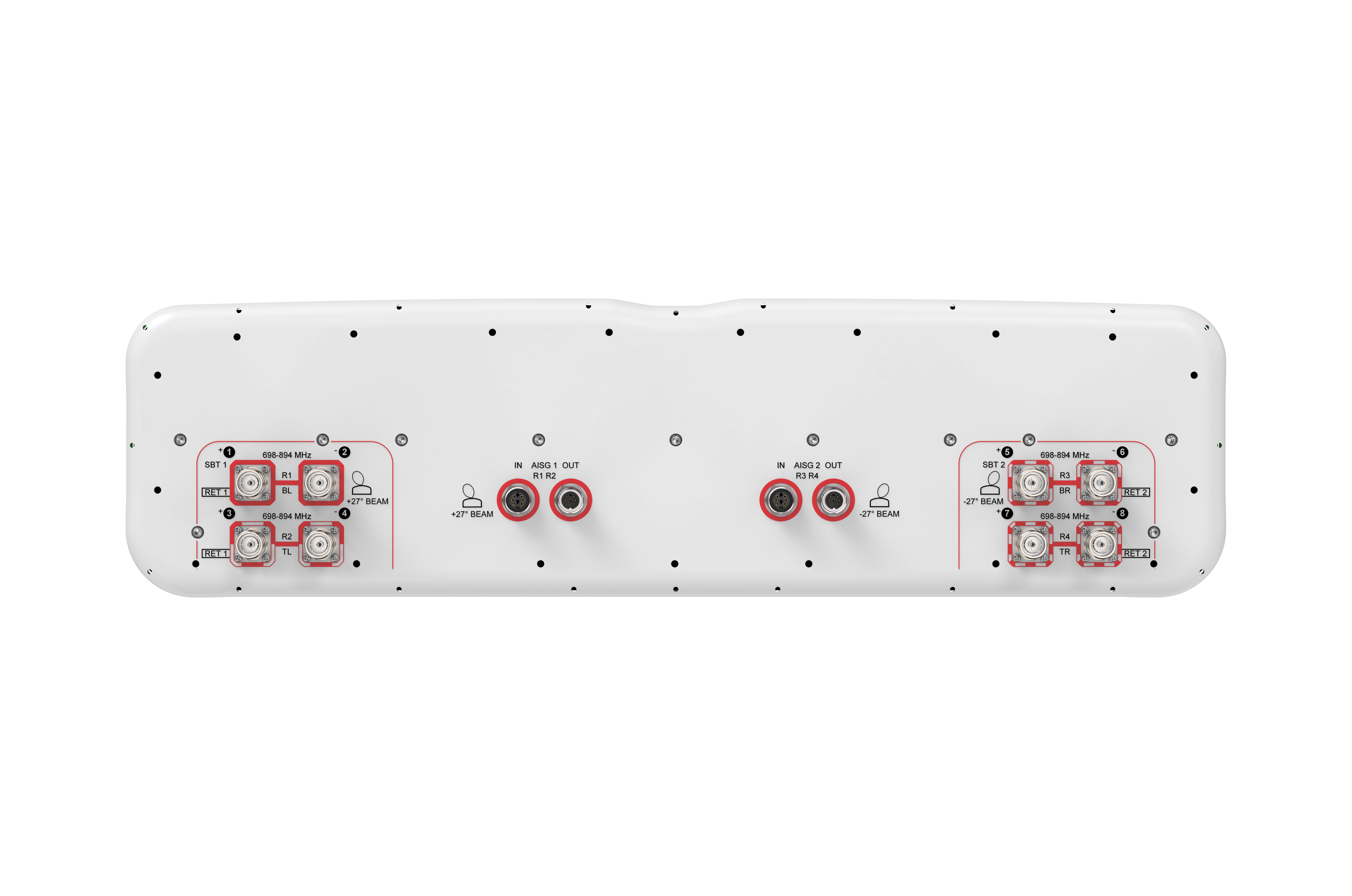

| Antenna Type | Multibeam |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, low band | 8 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 2 female | 2 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 | Port 5 |
| Internal RET | Low band (2) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Power Consumption, normal conditions, maximum | 10 W |
| Protocol | 3GPP/AISG 2.0 (Multi-RET) |
Dimensions
| Width | 749 mm | 29.488 in |
| Depth | 197 mm | 7.756 in |
| Length | 2438 mm | 95.984 in |
| Net Weight, without mounting kit | 64 kg | 141.096 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 894 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 1,000 W |
Electrical specifications

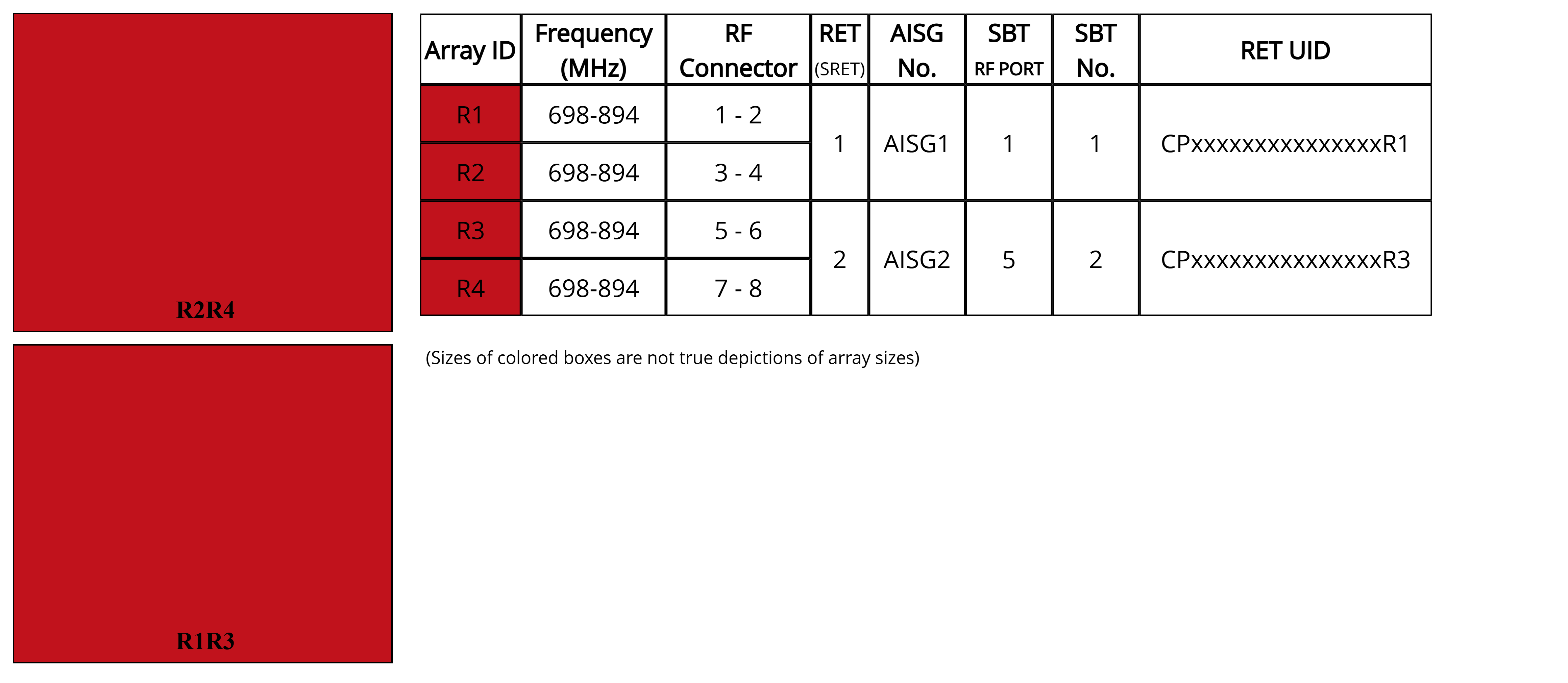

| R1-R4 | R1-R4 | |
| Frequency Band, MHz | 698–798 | 824–894 |
| RF Port | 1-8 | 1-8 |
| Gain, Maximum, dBi | 16.800 | 17.500 |
| Gain, dBi | 16.3 | 17.2 |
| Beam Centers, Horizontal, degrees | ±27 | ±27 |
| Beamwidth, Horizontal, degrees | 33 | 30 |
| Beamwidth, Vertical, degrees | 18.9 | 16.9 |
| Beam Tilt, degrees | 2–16 | 2–16 |
| Horizontal Sidelobe, dB | 20 | 21 |
| USLS (First Lobe), dB | 17 | 18 |
| Front-to-Back Ratio at 180°, dB | 30 | 37 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 27 | 33 |
| CPR at Boresight, dB | 21 | 22 |
| Isolation, Cross Polarization, dB | 25 | 25 |
| Isolation, Beam to Beam, dB | 17 | 17 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 |
| Input Power per Port, maximum, watts | 200 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 2,397.0 N @ 150 km/h (538.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 268.0 N @ 150 km/h (60.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 2,397.0 N @ 150 km/h (538.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 2,397.0 N @ 150 km/h (538.9 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 910 mm | 35.827 in |
| Depth, packed | 356 mm | 14.016 in |
| Length, packed | 3201 mm | 126.024 in |
| Weight, gross | 100 kg | 220.462 lb |
Regulatory compliance/certifications
| Agency | Classification |
| UK-ROHS | Compliant |
General specifications
| Antenna Type | Multibeam |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, low band | 8 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 2 female | 2 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 | Port 5 |
| Internal RET | Low band (2) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Power Consumption, normal conditions, maximum | 10 W |
| Protocol | 3GPP/AISG 2.0 (Multi-RET) |
Dimensions
| Width | 749 mm | 29.488 in |
| Depth | 197 mm | 7.756 in |
| Length | 2438 mm | 95.984 in |
| Net Weight, without mounting kit | 64 kg | 141.096 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 894 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 1,000 W |
Electrical specifications
| R1-R4 | R1-R4 | |
| Frequency Band, MHz | 698–798 | 824–894 |
| RF Port | 1-8 | 1-8 |
| Gain, Maximum, dBi | 16.800 | 17.500 |
| Gain, dBi | 16.3 | 17.2 |
| Beam Centers, Horizontal, degrees | ±27 | ±27 |
| Beamwidth, Horizontal, degrees | 33 | 30 |
| Beamwidth, Vertical, degrees | 18.9 | 16.9 |
| Beam Tilt, degrees | 2–16 | 2–16 |
| Horizontal Sidelobe, dB | 20 | 21 |
| USLS (First Lobe), dB | 17 | 18 |
| Front-to-Back Ratio at 180°, dB | 30 | 37 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 27 | 33 |
| CPR at Boresight, dB | 21 | 22 |
| Isolation, Cross Polarization, dB | 25 | 25 |
| Isolation, Beam to Beam, dB | 17 | 17 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 |
| Input Power per Port, maximum, watts | 200 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 2,397.0 N @ 150 km/h (538.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 268.0 N @ 150 km/h (60.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 2,397.0 N @ 150 km/h (538.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 2,397.0 N @ 150 km/h (538.9 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 910 mm | 35.827 in |
| Depth, packed | 356 mm | 14.016 in |
| Length, packed | 3201 mm | 126.024 in |
| Weight, gross | 100 kg | 220.462 lb |
Regulatory compliance/certifications
| Agency | Classification |
| UK-ROHS | Compliant |
